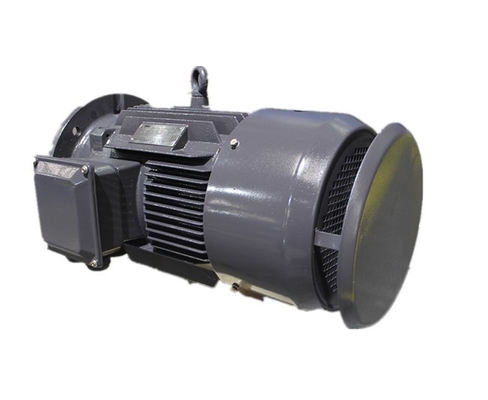

YE3 180L-4 Low Voltage AC Asynchronous Motor 22kW 41.8A

  • YE3 180L-4 Low Voltage AC Asynchronous Motor 22kW 41.8A
Place of Origin China
Brand Name Simo Motor
Certification 3C,CE,GOST,CNAS,UL,QMS,EMS
Model Number YE3 Series High Efficiency Low Voltage Three-phase Asynchronous Motor
Minimum Order Quantity 1
Packaging Details Solid Wood Package
Delivery Time 50-60 Working Days
Payment Terms T/T
Product Details
Type YE3 180L-4 High Efficiency Low Voltage Three-phase Asynchronous Motor Frame H80-H355
Voltage 380V, 400V, 415V, 660V, 690V, 220/380V, 380/660V, 400/690V, Etc No. Of Poles 2P, 4P, 6P, 8P, 10P, 12P
Efficiency Grade IEC 60034-30 Grade 3 (IE2) Protection Grade IP55
Power 0.18kW-315kW Frequency 50Hz
Cooling Type IC411 Mounting Type IM B3, IM B35, IM B5, IM V1, Etc
High Light

28.4A Low Voltage Asynchronous Motor

,

160M2-2 AC Asynchronous Motor

,

15KW 28.4A AC Asynchronous Motor
Leave a Message
Product Description

YE3-180L-4-22kW-380V-IP55-Class F-IM B3 High Efficiency Low Voltage Three-phase Asynchronous Motor



Motor Parameters



Type: YE3-180L-4-22kW-380V-IP55-Class F-IM B3 High Efficiency Low Voltage Three-phase Asynchronous Motor
Rated Power 22 Locked Torque/Rated Torque 7.8
Rated Current 41.8 Max. Torque/Rated Torque 2.3
Speed 1480 Rated Torque 140.0
Efficiency 93.0 Rotational Inertia 0.21
Power Factor 0.86 No-load Noise 76
Locked Torque/Rated Torque 2.0 Weight 207



Technical Advantages

YE3-180L-4-22kW-380V-IP55-Class F-IM B3 High Efficiency Low Voltage Three-phase Asynchronous Motor has characteristics of 22 kW of rated power, 41.8 A of rated current, 1480 r/min of speed, 93.0 % of efficiency, 0.86 Cos φ of power factor. Its locked torque/ rated torque is 2.0, locked current/ rated current is 7.8, Max. torque/ rated torque is 2.3, rated torque is 140.0, rotational inertia is 0.21, no-load noise is 76 and the weight is 2.7kg.



This series of high efficiency three phase asynchronous motor is totally enclosed self-ventilated squirrel-cage three phase asynchronous motor manufactured by our company. Motor housing generally adopts high-strengthen gray iron, and coil adopts fine anti-corrosive cooper wire.



It can be widely used in the speed regulation of constant torque and power in light industry, textile, chemical industry, metallurgy, machine tool, etc., and in the speed regulation of energy-saving in fans, pumps, etc., which helps to achieve the automatic control of the speed regulation system.



Product Features

This series of motor has the advantages of excellent performance, high efficiency, energy-saving, large temperature rise margin, long life, low vibration, excellent starting performance, good-looking appearance and high reliability.



Operation Conditions

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).



Wide Application

This series of motor is commonly used to drive water pumps, fans, compressors, conveyors and other transmission machinery in energy conservation and environmental protection transformation projects, national water conservancy projects, etc.



Profile Display

YE3 180L-4 Low Voltage AC Asynchronous Motor 22kW 41.8A 0

Our Advantages

We are a developing and manufacturing enterprise specialized in large and medium, high and low voltage, AC and DC motors, synchronous motors, high efficiency motors and explosion-proof motors; a power system supplier intergrated motor design and manufacturing, mechanical processing, model manufacturing and automatic complete engineering. Our products mainly apply in electric power, coal, petroleum, mining exploring, metallurgy, railways, transportation, chemistry, agriculture, hydraulic power, navigation and high-tech areas, which is the motor supporting manufacturer specially designated by the Ministry of Railways.



Service Expanded

We proposed the service concept of "Customization" in accordance with the actual needs of customers in case of any special requirements. you can put forward special requirements and we will design an exclusive scheme as per your requirements. contact us of specific design and price.



Available Types of YE3



Type



Rated Power

kW



Rated Current

A



Speed

r/min





Efficiency

%





Power Factor

Cosφ



Locked torque



Locked

current



Max. torque





Rated

Torque

N•m





Moment of Inertia

kg•m2





No-Load Noise

dB(A)





Weight

Kg



Rated

Torque



Rated

Current



Rated Torque
Synchronous Speed 3000r/min
YE3-80M1-2 0.75 1.8 2880 80.7 0.82 2.3 7.0 2.3 2 -- 62 15
YE3-80M2-2 1.1 2.5 2880 82.7 0.83 2.2 7.6 2.3 4 -- 62 16
YE3-90S-2 1.5 3.3 2890 84.2 0.84 2.2 7.9 2.3 5 -- 67 22
YE3-90L-2 2.2 4.7 2890 85.9 0.85 2.2 7.9 2.3 7 -- 67 25
YE3-100L-2 3 6.2 2910 87.1 0.87 2.2 8.5 2.3 10 -- 74 34
YE3-112M-2 4 8.0 2910 88.1 0.88 2.2 8.5 2.3 13 -- 77 44
YE3-132S1-2 5.5 10.6 2945 89.2 0.88 2.0 8.5 2.3 17.5 0.01 79 63
YE3-132S2-2 7.5 14.4 2940 90.1 0.88 2.0 8.5 2.3 23.8 0.02 79 67
YE3-160M1-2 11 20.6 2950 91.2 0.89 2.0 8.5 2.3 35.0 0.05 81 122
YE3-160M2-2 15 27.9 2950 91.9 0.89 2.0 8.5 2.3 47.8 0.06 81 132
YE3-160L-2 18.5 34.2 2950 92.4 0.89 2.0 8.5 2.3 58.9 0.07 81 136
YE3-180M-2 22 40.5 2960 92.7 0.89 2.0 8.2 2.3 70.0 0.11 83 197
YE3-200L1-2 30 54.9 2970 93.3 0.89 2.0 7.6 2.3 95.5 0.17 84 253
YE3-200L2-2 37 67.4 2975 93.7 0.89 2.0 7.6 2.3 117.8 0.20 84 273
YE3-225M-2 45 80.8 2975 94.0 0.90 2.0 8.0 2.3 143.2 0.27 86 308
YE3-250M-2 55 98.5 2970 94.3 0.90 2.0 8.0 2.3 175.0 0.39 89 410
YE3-280S-2 75 134 2980 94.7 0.90 1.8 7.5 2.3 238.7 0.69 91 470
YE3-280M-2 90 160 2980 95.0 0.90 1.8 7.5 2.3 286.5 0.82 91 540
YE3-315S-2 110 195 2975 95.2 0.90 1.8 7.5 2.3 350.1 1.58 92 875
YE3-315M-2 132 234 2975 95.4 0.90 1.8 7.5 2.3 420.2 1.78 92 965
YE3-315L1-2 160 279 2975 95.6 0.91 1.8 7.5 2.3 509.3 2.04 92 1038
YE3-315L-2 185 323 2975 95.7 0.91 1.8 7.5 2.3 588.9 2.27 92 1085
YE3-315L2-2 200 349 2975 95.8 0.91 1.8 7.5 2.2 636.6 2.27 92 1085
YE3-355M1-2 220 383 2980 95.8 0.91 1.6 7.5 2.2 700 2.86 100 1480
YE3-355M-2 250 436 2980 95.8 0.91 1.6 7.5 2.2 795 3.27 100 1560
YE3-355L1-2 280 488 2980 95.8 0.91 1.6 7.5 2.2 891 3.83 100 1660
YE3-355L-2 315 549 2980 95.8 0.91 1.6 7.5 2.2 1002 4.03 100 1730
Synchronous Speed 1500 r/min
YE3-80M1-4 0.55 1.4 1435 80.8 0.75 2.4 6.6 2.3 4 -- 62 17
YE3-80M2-4 0.75 1.8 1435 82.5 0.75 2.3 6.6 2.3 5 -- 62 18
YE3-90S-4 1.1 2.6 1440 84.1 0.76 2.3 6.8 2.3 7 -- 67 23
YE3-90L-4 1.5 3.5 1440 85.3 0.77 2.3 7.0 2.3 10 -- 67 27
YE3-100L1-4 2.2 5.0 1450 86.7 0.81 2.3 7.6 2.3 14 -- 74 33
YE3-100L2-4 3 6.6 1450 87.7 0.82 2.3 7.6 2.3 19 -- 74 35
YE3-112M-4 4 8.7 1450 88.6 0.82 2.2 7.8 2.3 25 -- 77 48

YE3-132S-4

5.5

11.2

1470

89.6

0.83

2.0

7.9

2.3

35.0

0.04

71

69

YE3-132M-4

7.5

15.0

1470

90.4

0.84

2.0

7.5

2.3

47.7

0.05

71

79
YE3-160M-4 11 21.5 1475 91.4 0.85 2.2 7.7 2.3 70.0 0.10 73 125
YE3-160L-4 15 28.8 1475 92.1 0.86 2.2 7.8 2.3 95.9 0.13 73 139
YE3-180M-4 18.5 35.3 1480 92.6 0.86 2.0 7.8 2.3 117.7 0.18 76 187
YE3-180L-4 22 41.8 1480 93.0 0.86 2.0 7.8 2.3 140.0 0.21 76 207
YE3-200L-4 30 56.6 1475 93.6 0.86 2.1 7.3 2.3 191 0.33 76 249
YE3-225S-4 37 69.6 1485 93.9 0.86 2.0 7.4 2.3 235.5 0.57 78 312
YE3-225M-4 45 84.4 1485 94.2 0.86 2.0 7.4 2.3 286.5 0.64 78 338
YE3-250M-4 55 102.7 1480 94.6 0.86 2.2 7.4 2.3 350.1 0.80 79 420
YE3-280S-4 75 136 1490 95.0 0.88 2.0 6.9 2.3 477.4 1.65 80 502
YE3-280M-4 90 163 1490 95.2 0.88 2.0 6.9 2.3 572.9 2.01 80 572
YE3-315S-4 110 197 1485 95.4 0.89 2.0 7.0 2.2 700.3 3.33 88 875
YE3-315M-4 132 236 1485 95.6 0.89 2.0 7.0 2.2 840.4 3.71 88 965
YE3-315L1-4 160 285 1485 95.8 0.89 2.0 7.1 2.2 1019 4.31 88 1045
YE3-315L-4 185 326 1485 95.9 0.90 2.0 7.1 2.2 1177 5.12 88 1149
YE3-315L2-4 200 352 1485 96.0 0.90 2.0 7.1 2.2 1273 5.12 88 1149
YE3-355M1-4 220 387 1490 96.0 0.90 2.0 7.1 2.2 1401 7.68 95 1485
YE3-355M-4 250 440 1490 96.0 0.90 2.0 7.1 2.2 1592 8.51 95 1560
YE3-355L2-4 280 492 1490 96.0 0.90 2.0 7.1 2.2 1783 9.62 95 1655
YE3-355L-4 315 554 1490 96.0 0.90 2.0 7.1 2.2 2006 10.54 95 1747
Synchronous Speed 1000 r/min
YE3-80M1-6 0.37 1.1 928 73.5 0.70 1.9 6.0 2.0 4 -- 62 17
YE3-80M2-6 0.55 1.5 928 77.2 0.72 1.9 6.0 2.1 5 -- 62 18
YE3-90S-6 0.75 2.1 950 78.9 0.71 2.0 6.0 2.1 7 -- 67 22
YE3-90L-6 1.1 3.0 950 81.0 0.73 2.0 6.0 2.1 11 -- 67 25
YE3-100L1-6 1.5 4.0 955 82.5 0.73 2.0 6.5 2.1 14 -- 74 31
YE3-112M-6 2.2 5.7 955 84.3 0.74 2.0 6.6 2.1 21 -- 77 42
YE3-132S-6 3 7.2 970 85.6 0.74 2.0 6.8 2.1 28.6 0.04 69 62
YE3-132M1-6 4 9.5 970 86.8 0.74 2.0 6.8 2.1 38.2 0.05 69 69
YE3-132M2-6 5.5 12.7 970 88.0 0.75 2.0 7.0 2.1 52.5 0.07 69 79
YE3-160M-6 7.5 16.2 980 89.1 0.79 2.0 7.0 2.1 71.5 0.12 73 98
YE3-160L-6 11 23.1 980 90.3 0.80 2.0 7.2 2.1 105.1 0.16 73 118
YE3-180L-6 15 30.9 980 91.2 0.81 2.0 7.3 2.1 143.2 0.25 73 187
YE3-200L1-6 18.5 37.8 985 91.7 0.81 2.0 7.3 2.1 176.7 0.39 73 244
YE3-200L2-6 22 44.8 985 92.2 0.81 2.0 7.4 2.1 210.1 0.45 73 268
YE3-225M-6 30 59.1 990 92.9 0.83 2.0 6.9 2.1 286.5 0.64 74 296
YE3-250M-6 37 71.7 990 93.3 0.84 2.0 7.1 2.1 353.3 1.02 76 362
YE3-280S-6 45 85.8 990 93.7 0.85 2.0 7.3 2.0 429.7 1.76 78 484
YE3-280M-6 55 103 990 94.1 0.86 2.0 7.3 2.0 525.5 2.17 78 527
YE3-315S-6 75 143 990 94.6 0.84 2.0 6.6 2.0 716.2 3.92 83 815
YE3-315M-6 90 170 990 94.9 0.85 2.0 6.7 2.0 859.5 4.42 83 955
YE3-315L1-6 110 207 990 95.1 0.85 2.0 6.7 2.0 1051 5.51 83 1065
YE3-315L2-6 132 244 990 95.4 0.86 2.0 6.8 2.0 1261 6.81 83 1095
YE3-355M1-6 160 296 990 95.6 0.86 1.8 6.8 2.0 1528 9.81 85 1510
YE3-355M-6 185 341 990 95.7 0.86 1.8 6.8 2.0 1767 11.21 85 1610
YE3-355M2-6 200 365 990 95.8 0.87 1.8 6.8 2.0 1910 12.15 85 1660
YE3-355L1-6 220 401 990 95.8 0.87 1.8 6.8 2.0 2101 13.78 85 1740
YE3-355L-6 250 456 990 95.8 0.87 1.8 6.8 2.0 2388 15.65 85 1790
Synchronous Speed 750 r/min
YE3-80M1-8 0.18 0.5 650 58.7 0.61 1.8 5.2 1.9 2 -- 62 --
YE3-80M2-8 0.25 1.0 650 64.1 0.61 1.8 5.7 1.9 3 -- 62 --
YE3-90S-8 0.37 1.3 670 69.3 0.61 1.8 6.2 1.9 5 -- 67 --
YE3-90L-8 0.55 1.7 670 73.0 0.61 1.8 5.9 2.0 7 -- 67 --
YE3-100L1-8 0.75 2.3 690 75.0 0.67 1.8 6.2 2.0 10 -- 74 --
YE3-100L2-8 1.1 3.1 690 77.7 0.69 1.8 6.2 2.0 14 -- 74 --
YE3-112M-8 1.5 4.1 690 79.7 0.70 1.8 6.7 2.0 19 -- 77 --
YE3-132S-8 2.2 5.7 710 81.9 0.71 1.8 6.7 2.0 28.0 0.04 64 53
YE3-132M-8 3 7.5 710 83.5 0.73 1.8 6.9 2.0 38.2 0.05 64 66
YE3-160M1-8 4 9.8 720 84.8 0.73 1.9 6.9 2.0 50.9 0.09 68 115
YE3-160M2-8 5.5 13.1 720 86.2 0.74 1.9 6.9 2.0 70.0 0.12 68 125
YE3-160L-8 7.5 17.4 720 87.3 0.75 1.9 6.6 2.0 95.5 0.17 68 132
YE3-180L-8 11 25.2 730 88.6 0.75 2.0 6.6 2.0 140.0 0.25 70 187
YE3-200L-8 15 33.5 730 89.6 0.76 2.0 6.8 2.0 191 0.36 70 228
YE3-225S-8 18.5 41.0 730 90.1 0.76 1.9 6.8 2.0 235.5 0.54 73 255
YE3-225M-8 22 47.3 730 90.6 0.78 1.9 7.0 2.0 280.1 0.64 73 287
YE3-250M-8 30 63.2 730 91.3 0.79 1.9 6.7 2.0 382.0 0.97 73 345
YE3-280S-8 37 77.5 740 91.8 0.79 1.9 6.7 2.0 471.1 1.61 76 487
YE3-280M-8 45 93.9 740 92.2 0.79 1.9 6.7 2.0 573.0 1.85 76 578
YE3-315S-8 55 112 740 92.5 0.81 1.8 6.8 2.0 700.3 3.93 82 1005
YE3-315M-8 75 151 740 93.1 0.81 1.8 6.3 2.0 955.0 5.38 82 1105
YE3-315L1-8 90 179 740 93.4 0.82 1.8 6.4 2.0 1146 6.40 82 1165
YE3-315L2-8 110 218 740 93.7 0.82 1.8 6.4 2.0 1401 7.51 82 1285
YE3-355M1-8 132 260 740 94.0 0.82 1.8 6.4 2.0 1681 11.80 89 1610
YE3-355M2-8 160 314 740 94.3 0.82 1.8 6.4 2.0 2037 14.39 89 1710
YE3-355L3-8 185 362 740 94.6 0.82 1.8 6.4 2.0 2356 16.55 89 1770
YE3-355L-8 200 387 740 94.6 0.83 1.8 6.4 2.0 2547 18.71 89 1810
Synchronous Speed 600 r/min
YE3-315S-10 45 99.1 590 92.0 0.75 1.5 6.2 2.0 716.2 3.93 82 1005
YE3-315M-10 55 121 590 92.0 0.75 1.5 6.2 2.0 875.4 4.78 82 1105
YE3-315L1-10 75 162 590 92.8 0.76 1.5 5.8 2.0 1194 6.40 82 1165
YE3-315L2-10 90 191 590 92.8 0.77 1.5 5.9 2.0 1433 7.51 82 1285
YE3-355M-10 90 191 590 92.8 0.77 1.3 6.1 2.0 1433 9.80 90 1490
YE3-355M1-10 110 230 590 93.2 0.78 1.3 6.1 2.0 1750 11.82 90 1510
YE3-355M2-10 132 274 590 93.8 0.78 1.3 6.1 2.0 2101 14.42 90 1610
YE3-355L-10 160 332 590 93.8 0.78 1.3 6.1 2.0 2547 17.88 90 1710
