500kW 10KV AC Synchronous Motor TDMK500-32 2150mm Stator Excircle
| Place of Origin | China |
|---|---|
| Brand Name | Simo Motor |
| Certification | 3C, CE, GOST, CNAS,UL,QMS,EMS |
| Model Number | TDMK Series Large Size Three-phase AC Synchronous Motor |
| Minimum Order Quantity | 1 |
| Packaging Details | Solid wood package |
| Delivery Time | 50-60 Working Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | TDMK Series Large Size Three-phase AC Synchronous Motor | Stator Excircle | 2150~3250mm |
|---|---|---|---|
| No. Of Poles | 32P,36P,40P | Rated Voltage | 6kV, 10kV |
| Protection Grade | IP00, IP20 | Power | 280kW~2000kW |
| Mounting Type | IM 7311 | Cooling Type | IC01 |
| Highlight | 500kW 10KV AC Synchronous Motor,500-32 AC Synchronous Motor,2150mm High Voltage AC Motor |
||
Product Description
TDMK500-32/2150-500kW-10KV AC Synchronous Motor
Motor Parameters
| Type: | TDMK | ||
| Stator Excircle | 2150~3250mm | Power | 280kW~2000kW |
| No. of Poles | 32P,36P,40P | Insulation Grade | 155 (F) Grade |
| Rated Voltage | 6kV, 10kV | Mounting Type | IM 7311 |
| Protection Grade | IP00, IP20 | ||
Technical Advantage
This series of motor mainly applies in less dust indoor environment where altitude is not exceed 1000m, ambient temperature not exceed 40℃ which is free from steam, corrosive gases of acid and alkali. This series of motor allows full-voltage direct start. It can adopt reduced-voltage starting if full-voltage starting is not allowed by user power grid, hence, the starting current and terminal voltage decrease in direct proportion and starting torque and terminal voltage decrease in inverse proportion.
Product Features
This series of motor has characteristics of large torque, constant speed and it can remain constant synchronous speed when load changes dramatically.
Operation Conditions
Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).
Wide Application
This series of motor mainly applies in mechanical equipment of lower drive speed and large power among mine and cement industries, such as grate ball mill, rod mill, coal mill, etc.

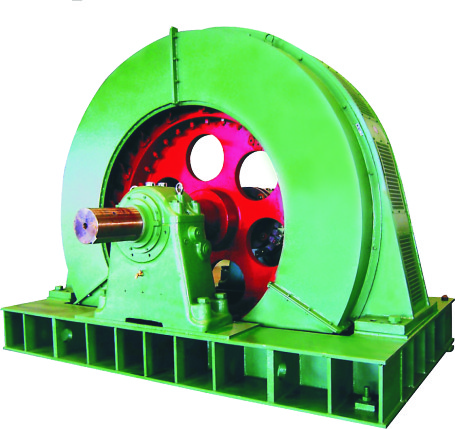

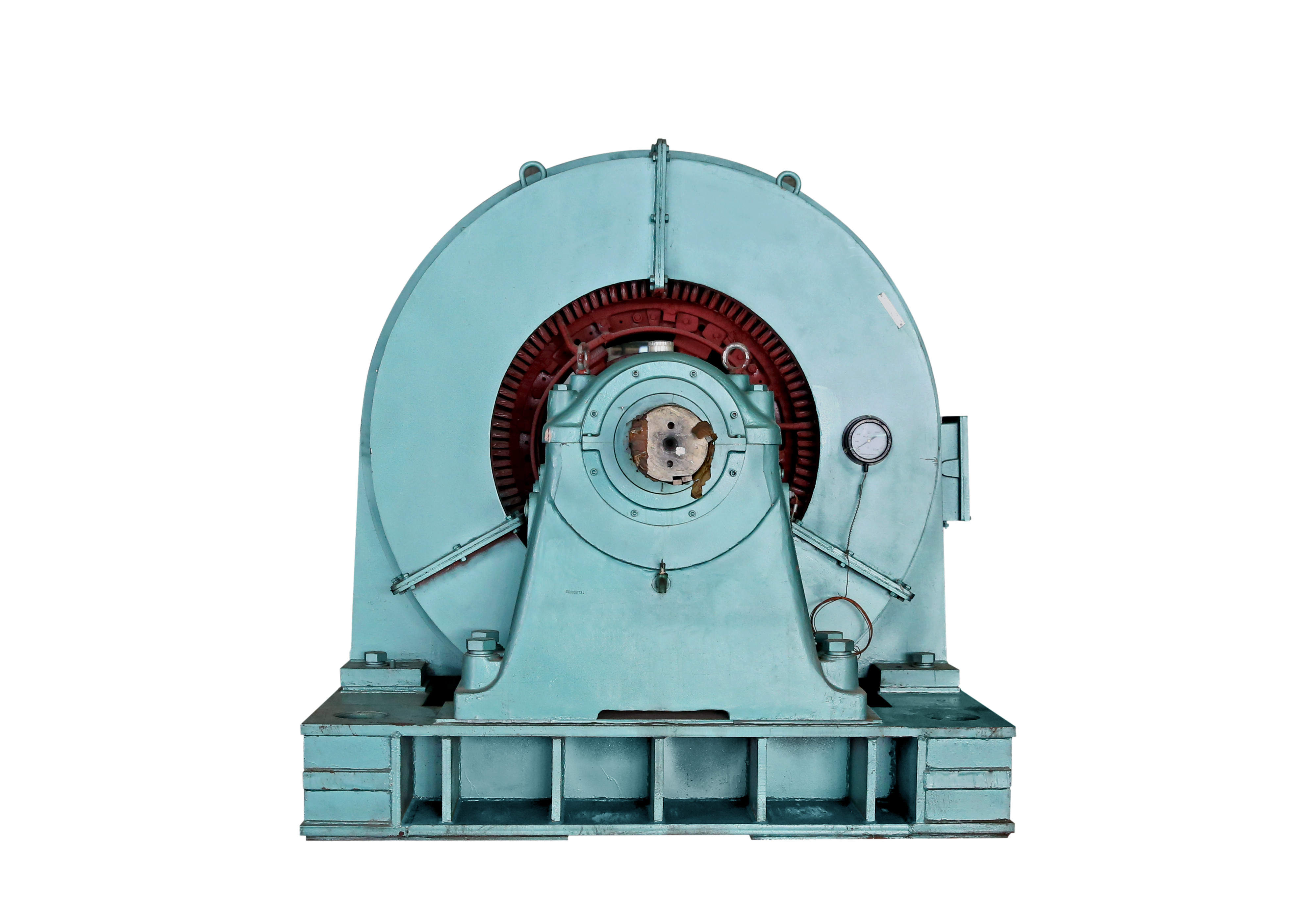

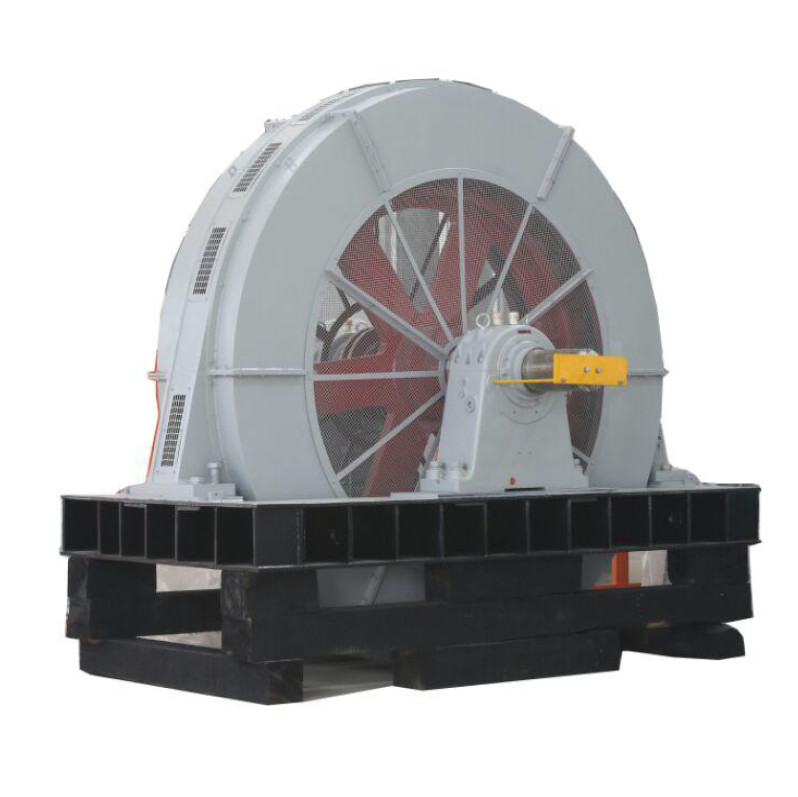

Motor Display
