6kV IP23 Class F IM B3 HV Electric Motor Three Phase Light Weight

  • 6kV IP23 Class F IM B3 HV Electric Motor Three Phase Light Weight
  • 6kV IP23 Class F IM B3 HV Electric Motor Three Phase Light Weight
  • 6kV IP23 Class F IM B3 HV Electric Motor Three Phase Light Weight
Place of Origin China
Brand Name Simo Motor
Certification 3C, CE, GOST, CNAS, UL, QMS, EMS
Model Number YRKK Series HV Three-phase Asynchronous Motor
Minimum Order Quantity 1
Packaging Details Solid Wood Package
Delivery Time 50-60 Working Days
Payment Terms T/T
Product Details
Type YRKK Series HV Three-phase Asynchronous Motor Frame H355-H1120
Voltage 3kV, 6kV, 6.6kV, 10kV, Etc No. Of Poles 2P, 4P, 6P, 8P, 10P, 12P, 16P
Efficiency Grade Grade 2 Protection Grade IP44, IP54, IP55
Power 200kW-9000kW Frequency 50Hz, 60Hz Or Variable Frequency Speed Control
Standard IC611, IC616, IC666 Mounting Type IM B3, IM B35, V15, Etc
High Light

IM B3 HV Electric Motor

,

6kV HV Electric Motor

,

IP23 HV Electric Motor
Leave a Message
Product Description

6kV IP23 Class F IM B3 HV Electric Motor Three Phase Light Weight



HV Electric Motor Technical Advantages

This series of motor is winding rotor three-phase asynchronous motor, which can adjust starting torque and starting current through adjust rotor external connected additional resistance. Motor proper adopts box-type steel plate welding structure with light weight and good rigidity.



HV Electric Motor Features

This series of motor has advantages of compact structure, light weight, high efficiency, energy-saving, low noise and vibration, high reliability, long service life and convenient installation and maintenance, etc.



HV Electric Motor Operation Conditions

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).



HV Electric Motor Application

This series of motor is mainly applied in general machinery equipment or other similar machinery equipment, such as rolling mill, winch, blowers, water pump, mill, crusher, grinder applied in petroleum, chemical engineering, coal, power station, metallurgical, textile, medicine, food processing industries.



Profile Display

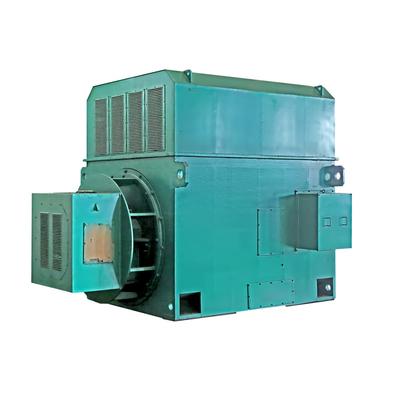

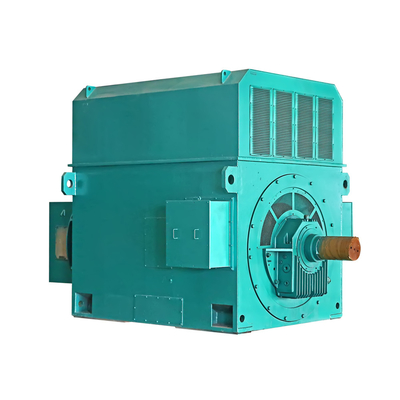

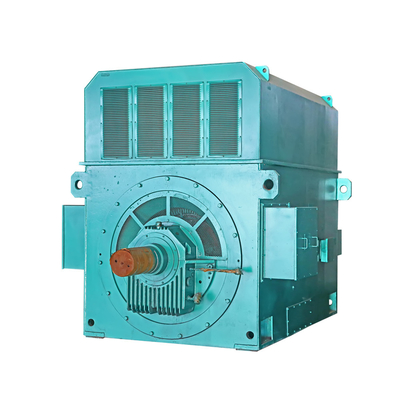

6kV IP23 Class F IM B3 HV Electric Motor Three Phase Light Weight 06kV IP23 Class F IM B3 HV Electric Motor Three Phase Light Weight 16kV IP23 Class F IM B3 HV Electric Motor Three Phase Light Weight 2

Available Types of YRKK



Type Rated Power Rated Current Rated Speed Efficiency Power Factor

Max. Torque

Rated Torque

 Weight
kW A r/min % cosφ kg
YRKK7102-4 2500 294.8 1494 94.9 0.86 1.8 　
YRKK7103-4 2800 329.8 1494 95.0 0.86 1.8 　
YRKK7104-4 3150 370.2 1494 95.2 0.86 1.8 　
YRKK7105-4 3550 416.8 1494 95.3 0.86 1.8 　
YRKK7106-4 4000 463.3 1494 95.5 0.87 1.8 　
YRKK8001-4 4000 463.7 1494 95.4 0.87 1.8 　
YRKK8002-4 4500 521.2 1494 95.5 0.87 1.8 　
YRKK8003-4 5000 578.5 1494 95.6 0.87 1.8 　
YRKK8004-4 5600 647.2 1494 95.7 0.87 1.8 　
YRKK7101-6 1800 214.3 995 95.1 0.85 1.8 　
YRKK7102-6 2000 237.6 995 95.3 0.85 1.8 　
YRKK7103-6 2240 265.8 995 95.4 0.85 1.8 　
YRKK7104-6 2500 296.4 995 95.5 0.85 1.8 　
YRKK7105-6 2800 331.6 995 95.6 0.85 1.8 　
YRKK7106-6 3150 372.6 995 95.7 0.85 1.8 　
YRKK8001-6 2800 331.9 995 95.5 0.85 1.8 　
YRKK8002-6 3150 373.0 995 95.6 0.85 1.8 　
YRKK8003-6 3550 415.5 995 95.6 0.86 1.8 　
YRKK8004-6 4000 467.7 995 95.7 0.86 1.8 　
YRKK8005-6 4500 525.6 995 95.8 0.86 1.8 　
YRKK7101-8 1400 169.2 745 94.8 0.84 1.8 　
YRKK7102-8 1600 192.9 745 95.0 0.84 1.8 　
YRKK7103-8 1800 216.6 745 95.2 0.84 1.8 　
YRKK7104-8 2000 240.2 745 95.4 0.84 1.8 　
YRKK7105-8 2240 268.4 745 95.6 0.84 1.8 　
YRKK8001-8 2000 240.4 745 95.3 0.84 1.8 　
YRKK8002-8 2240 269.0 745 95.4 0.84 1.8 　
YRKK8003-8 2500 296.7 745 95.4 0.85 1.8 　
YRKK8004-8 2800 331.9 745 95.5 0.85 1.8 　
YRKK8005-8 3150 373.0 745 95.6 0.85 1.8 　
YRKK9001-8 3150 373.4 745 95.5 0.85 1.8 　
YRKK9002-8 3550 420.4 745 95.6 0.85 1.8 　
YRKK9003-8 4000 473.2 745 95.7 0.85 1.8 　
YRKK9004-8 4500 532.3 745 95.7 0.85 1.8 　
YRKK7101-10 1250 154.7 595 94.8 0.82 1.8 　
YRKK7102-10 1400 172.9 595 95.0 0.82 1.8 　
YRKK7103-10 1600 197.2 595 95.2 0.82 1.8 　
YRKK7104-10 1800 221.4 595 95.4 0.82 1.8 　
YRKK8001-10 1800 221.6 595 95.3 0.82 1.8 　
YRKK8002-10 2000 246.0 595 95.4 0.82 1.8 　
YRKK8003-10 2240 275.2 595 95.5 0.82 1.8 　
YRKK8004-10 2500 306.9 595 95.6 0.82 1.8 　
YRKK9001-10 2500 307.2 595 95.5 0.82 1.8 　
YRKK9002-10 2800 343.7 595 95.6 0.82 1.8 　
YRKK9003-10 3150 386.3 595 95.7 0.82 1.8 　
YRKK9004-10 3550 435.3 595 95.7 0.82 1.8 　
YRKK9005-10 4000 490.0 595 95.8 0.82 1.8 　
YRKK10001-10 4000 490.5 595 95.7 0.82 1.8 　
YRKK10002-10 4500 551.8 595 95.7 0.82 1.8 　
YRKK10003-10 5000 612.5 595 95.8 0.82 1.8 　
YRKK10004-10 5600 686.0 595 95.8 0.82 1.8 　
YRKK10005-10 6300 770.9 595 95.9 0.82 1.8 　
YRKK7101-12 900 111.9 495 94.4 0.82 1.8 　
YRKK7102-12 1000 124.0 495 94.6 0.82 1.8 　
YRKK7103-12 1120 138.6 495 94.8 0.82 1.8 　
YRKK7104-12 1250 154.4 495 95.0 0.82 1.8 　
YRKK7105-12 1400 172.6 495 95.2 0.82 1.8 　
YRKK8001-12 1250 154.6 495 94.9 0.82 1.8 　
YRKK8002-12 1400 172.9 495 95.0 0.82 1.8 　
YRKK8003-12 1600 197.4 495 95.1 0.82 1.8 　
YRKK8004-12 1800 221.9 495 95.2 0.82 1.8 　
YRKK8005-12 2000 246.0 495 95.4 0.82 1.8 　
YRKK9001-12 2000 246.3 495 95.3 0.82 1.8 　
YRKK9002-12 2240 275.5 495 95.4 0.82 1.8 　
YRKK9003-12 2500 307.2 495 95.5 0.82 1.8 　
YRKK9004-12 2800 343.7 495 95.6 0.82 1.8 　
YRKK10001-12 2800 344.1 495 95.5 0.82 1.8 　
YRKK10002-12 3150 386.7 495 95.6 0.82 1.8 　
YRKK10003-12 3550 435.8 495 95.6 0.82 1.8 　
YRKK10004-12 4000 490.5 495 95.7 0.82 1.8 　
YRKK10005-12 4500 551.8 495 95.7 0.82 1.8 　
YRKK7101-16 500 71.4 371 93.6 0.72 1.8 　
YRKK7102-16 560 79.8 371 93.8 0.72 1.8 　
YRKK7103-16 630 89.6 371 94.0 0.72 1.8 　
YRKK7104-16 710 100.7 371 94.2 0.72 1.8 　
YRKK7105-16 800 111.7 371 94.4 0.73 1.8 　
YRKK7106-16 900 125.4 371 94.6 0.73 1.8 　
YRKK8001-16 800 111.8 371 94.3 0.73 1.8 　
YRKK8002-16 900 125.7 371 94.4 0.73 1.8 　
YRKK8003-16 1000 139.5 371 94.5 0.73 1.8 　
YRKK8004-16 1120 156.1 371 94.6 0.73 1.8 　
YRKK8005-16 1250 174.0 371 94.7 0.73 1.8 　
YRKK9001-16 1250 174.2 371 94.6 0.73 1.8 　
YRKK9002-16 1400 194.9 371 94.7 0.73 1.8 　
YRKK9003-16 1600 222.5 371 94.8 0.73 1.8 　
YRKK9004-16 1800 250.0 371 94.9 0.73 1.8 　
YRKK9005-16 2000 277.5 371 95.0 0.73 1.8 　
YRKK10001-16 1800 246.9 371 94.8 0.74 1.8 　
YRKK10002-16 2000 274.0 371 94.9 0.74 1.8 　
YRKK10003-16 2240 306.6 371 95.0 0.74 1.8 　
YRKK10004-16 2500 341.8 371 95.1 0.74 1.8 　
YRKK10005-16 2800 382.5 371 95.2 0.74 1.8 　
YRKK10006-16 3150 429.8 371 95.3 0.74 1.8 　
