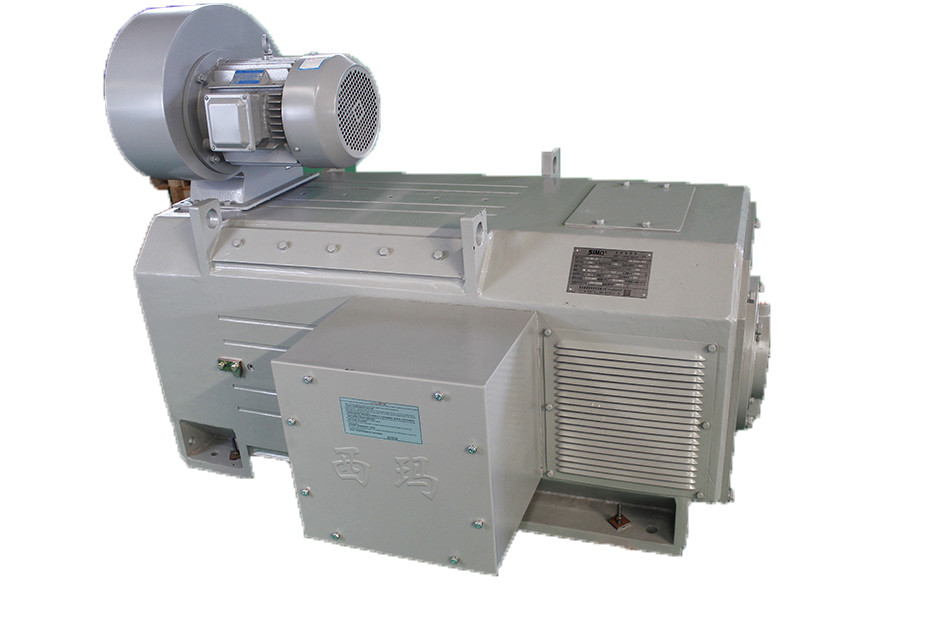

IP21S Class B-IM B3 DC Electric Motor Automatic Steady Speed

  • IP21S Class B-IM B3 DC Electric Motor Automatic Steady Speed
  • IP21S Class B-IM B3 DC Electric Motor Automatic Steady Speed
Place of Origin China
Brand Name Simo Motor
Certification 3C,CE,GOST,CNAS,UL,QMS,EMS
Model Number Z4 Series DC Motor
Minimum Order Quantity 1
Packaging Details Solid Wood Package
Delivery Time 50-60 Working Days
Payment Terms T/T
Product Details
Type DC Electric Motor Frame H100~H450
Rated Voltage 160V, 220V, 400V, 440V Protection Grade IP21S
Power 1.4kW~600kW Insulation Grade Automatic Steady Speed
Cooling Type IC06, IC17, IC37, ICW37A86
High Light

B3 DC Electric Motor

,

IP21S DC Electric Motor

,

Class B-IM DC Electric Motor
Leave a Message
Product Description

IP21S Class B-IM B3 DC Electric Motor Automatic Steady Speed



Technical Advantages

Z4 DC Electric Motor has more advantages than Z2 and Z3 series. It can not only supplied by direct current power, but also suitable to be supplied by static rectifying power. And the smaller rational inertia is, the better dynamic performance. Z4 motor can bear a higher rating of load, especially suitable for smooth speed control, high efficiency, automatic steady speed, sensitive control system. It has reached the international advanced level.



Product Features

This series of DC Electric Motor has fine speed adjusting characteristic which is smooth, convenient and its speed adjusting range is wide. (Rated speed adjusting upwardly is constant power and downwardly is constant torque). The potential wave is better, electromagnetic interference influence is smaller, the overload capacity is stronger and it can bear frequent impulse overload with a larger starting and braking torque.



Operation Conditions

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).



Wide Application

Z4 DC Electric Motor (Frame size 100-355mm) can be widely applied in metallurgical industry, such as rolling mill, metal cutting machine, paper-making, textile, printing, cement, plastic extruder and other industry. It is suitable for situations that require wide speed control scope, electric dragging where overload ability should not exceed 1.6 times.

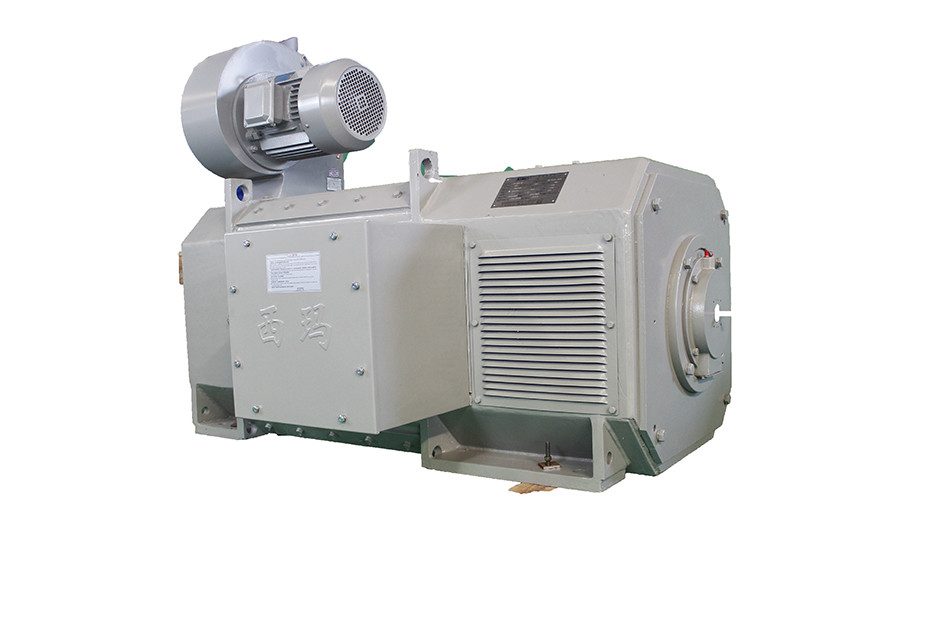

Profile Display



IP21S Class B-IM B3 DC Electric Motor Automatic Steady Speed 0IP21S Class B-IM B3 DC Electric Motor Automatic Steady Speed 1

Available Types of Z4



Type

 Rated power

Rated speed

 Rated current Speed with Field Weakened Exciting power  Armature circuit resistance Armature circuit resistance Magnetic inductance External inductance Efficiency GD2 Moment of inertia Weight
160V 400V 440V
KW r/min A r/min W Ω(20℃) m H H m H % kg·m2 kg
Z4-100-1 2.2 1500 - - 17.9 3000 315 1.19 11.2 22 10 67.8 0.044 60
1.5 1000 - - 13.4 2000 315 2.2 21.4 13 13 58.5 0.044 60
4 - - 3000 10.7 4000 315 2.85 26 18 - 80.1 0.044 60
2 - 1310 - 6.5 3000 315 9.23 86 18 - 68.4 0.044 60
2.2 - - 1500 6.5 3000 315 9.23 86 18 - 70.6 0.044 60
1.4 - 900 - 5.1 2000 315 16.8 163 18 -- 60.3 0.044 60
1.5 - - 1000 4.8 2000 315 16.8 163 18 - 63.2 0.044 60
Z4-112/2-1 5.5 - - 3000 14.7 4000 335 2.02 17.9 18 - 81.1 0.072 78
2.8   1350 - 9.1 3000 335 6.26 59 17 - 71.2 0.072 78
3 - -- 1500 8.7 3000 335 6.26 59 17 - 72.8 0.072 78
1.9 - 900 -- 6.9 2000 335 11.7 110 13 - 61.1 0.072 78
2.2   - 1000 7.1 2000 335 11.7 110 13 - 63.5 0.072 78
3 1540 - - 24 3000 335 0.79 7.1 13 9 69.1 0.072 78
2.2 1000 - - 19.6 2000 335 1.5 14.1 13 20 62.1 0.072 78
Z4-112/2-2 7 - 2700 - 20.4 4000 390 1.29 14 19 - 82.4 0.088 86
7.5 - - 3000 19.6 4000 390 1.29 14 19 - 83.5 0.088 86
3.7 - 1350 - 11.7 3000 390 4.45 48.5 24 - 74.1 0.088 86
4 - - 1500 11.3 3000 390 4.45 48.5 24 - 76 0.088 86
2.6 - 900 - 9 2000 390 7.94 83 14 - 65.1 0.088 86
3   - 1010 9.3 2000 390 7.94 83 14 - 67.3 0.088 86
4 1500 - - 31.4 3000 390 0.575 6.2 14 9 72.3 0.088 86
3 1070 -   24.8 2000 390 0.934 10.3 14 9 66.8 0.088 86
Z4-112/4-1 5.5 1520   - 42.7 3000 510 0.392 9.85 6.8 6 73 0.128 84
4 1000 2700 - 33.7 2000 510 0.741 7.7 6.7 4 64.9 0.128 84
10 - - 3000 29 3500 510 0.939 9 6.8 - 82.7 0.128 84
11 - 1340 - 28.9 3500 510 0.939 9 6.8 - 83.3 0.128 84
5 - - 1500 15.7 1800 510 3.28 32 9.3 - 74.3 0.128 84
505 - 900 - 15.6 1800 510 3.28 32 9.3 - 75.7 0.128 84
3.7 - - - 13 1100 510 5.95 63 9.1 - 65.2 0.128 84
4 - - 1000 12.3 1100 510 5.95 63 9.1 - 68.7 0.128 84
Z4-112/4-2 5.5 1090 - - 43.6 2000 640 0.445 5.1 5.8 3 69.5 0.156 94
13 - 2740 - 37 3600 640 0.565 6.4 5.8   84.4 0.156 94
15 - - 3050 38.6 3600 640 0.565 6.4 5.8 - 85.4 0.156 94
6.7 - 1330 - 20.6 1800 640 2.2 24.1 7.8 - 76.8 0.156 94
7.5 - - 1500 20.6 1800 640 2.2 24.1 7.8 - 78.4 0.156 94
5 - 955 - 16.1 1200 640 4 42.5 5.8 - 71.1 0.156 94
5.5 - - 1025 16.1 1200 640 4 42.5 5.8 - 71.9 0.156 94

Type

Rated power

Rated speed

Rated current

 Speed with Field Weakened Exciting power Armature circuit resistance Armature circuit resistance Magnetic inductance External inductance Efficiency GD2 Moment of inertia

Weight
160V 400V 440V
KW r/min A r/min W Ω(20℃) m H H m H % kg·m2 kg
Z4-132-1 18.5 - - 3000 47.4 4000 650 0.409 5.3 6.5 - 85.9 0.32 123
10 1360 - - 30.1 2200 650 13.1 18.9 9 - 79.4 0.32 123
11 - - 1500 29.6 2200 650 13.1 18.9 9 - 80.9 0.32 123
7 865 - - 21.8 1600 650 2.56 37.5 6.4 - 71.9 0.32 123
7.5 - - 1000 21.4 1600 650 2.56 37.5 6.4 - 74.5 0.32 123
Z4-132-2 20 2800 - - 55.4 3600 730 0.223 3.65 10 - 87.8 0.4 142
22 - - 3090 55.3 3600 730 0.223 3.65 10 - 88.3 0.4 142
15 - - 1510 39.3 2500 730 0.806 13.5 7.9 - 83.4 0.4 142
10 905 - - 31.1 1400 730 1.62 27.5 7.8 - 75.6 0.4 142
11 - - 1000 30.7 1400 730 1.62 27.5 7.8 - 77.7 0.4 142
Z4-132-3 27 2720 - - 75 3600 815 0.618 2.75 7.2 - 88.2 0.48 162
30 - - 3000 75 3600 815 0.618 2.75 7.2 - 88.6 0.48 162
18.5 - - 1540 48 2200 815 0.558 9.8 7.1 - 84.7 0.48 162
13.5 945 - - 41 1600 815 1.02 19.4 7 - 79.4 0.48 162
15 - - 1050 41 1600 815 1.02 19.4 7 - 80.5 0.48 162
Z4-160-11 33 2710 - - 93.4 3500 820 0.183 3.15 10 - 88.5 0.64 202
97 - - 3000 93.4 3500 820 0.183 3.15 10 - 88.5 0.64 202
19.5 1350 - - 58.8 3000 820 0.62 10.4 7.7 - 82.6 0.64 202
22 - - 1500 58.8 3000 820 0.62 10.4 7.7 - 82.6 0.64 202
Z4-160-12 40.5 2710 - - 113 3500 920 0.143 2.7 10 - 89.1 0.76 224
45 - - 3000 113 3500 920 0.143 2.7 10 - 89.1 0.76 224
21 16.5 900 - - 51.1 2000 920 0.915 17.7 7.9 - 79.4 0.76 224
18.5 -- - 1000 51.1 2000 920 0.915 17.7 7.9 - 79.4 0.76 224
32 49.5 2710 - - 137 3500 1050 0.0967 2.07 11 - 90.2 0.88 250
55 - - 3010 137 3500 1050 0.0967 2.07 11 - 90.2 0.88 250
Z4-160-31 27 1350 - - 77.8 3000 1050 0.376 8.3 10 - 85.7 0.88 250
30 - - 1500 77.8 3000 1050 0.376 8.3 10 - 85.7 0.88 250
31 19.5 900 - - 59.2 2000 1050 0.675 15.2 8.2 - 81.7 0.88 250
22     1000 59.2 2000 1050 0.675 15.2 8.2 - 81.7 0.88 250
Z4-180-11 33 1350 - - 95 3000 1200 0.263 4.9 7.67 - 86.5 1.52 305
37 - - 1500 95 3000 1200 0.263 4.9 7.67 - 86.5 1.52 305
16.5 670 - - 51.2 1900 1200 0.912 16.2 6.36 - 78.1 1.52 305
18.5 - - 750 51.2 1900 1200 0.912 16.2 6.36 - 78.1 1.52 305
13 540 - - 43.8 2000 1200 1.41 22.7 7.85 - 74.1 1.52 305
13 - - 600 43.8 2000 1200 1.41 22.7 7.85 - 74.1 1.52 305

Type

 Rated power

Rated speed

 Rated current Speed with Field Weakened Exciting power Armature circuit resistance Armature circuit resistance Magnetic inductance External inductance  Efficiency GD2 Moment of inertia Weight
400V 440V
KW r/min A r/min W Ω(20℃) mH H mH % kg·m2 kg
22 67 2710 - 185 3400 1400 0.064 1.2 6.67 - 90.7 1.72 335
65 - 3000 185 3400 1400 0.064 1.2 6.67 - 90.7 1.72 335
21 40.5 1350 - 115 2800 1400 0.217 4.7 6.3 - 87 1.72 335
45 - 1500 115 2800 1400 0.217 4.7 6.3 - 87 1.72 335
Z4-180-21 27 900 - 79 2000 1400 0.423 9.2 7.96 - 83.7 1.72 335
30 - 1000 79 2000 1400 0.423 9.2 7.96 - 83.7 1.72 335
21 19.5 670 - 60.3 140 1400 0.766 16.3 7.76 - 79.7 1.72 335
22 - 750 60.3 140 1400 0.766 16.3 7.76 - 79.7 1.72 335
21 16.5 540 - 52 1600 1400 0.973 19.9 6.96 - 76.8 1.72 335
18.5 - 600 52 1600 1400 0.973 19.9 6.96 - 76.8 1.72 335
Z4-180-31 33 900 - 97.5 2000 1500 0.34 6.8 6.34 - 83.6 1.92 370
37 - 1000 97.5 2000 1500 0.34 6.8 6.34 - 83.6 1.92 370
19.5 240 - 62.1 1250 1500 0.87 18.3 6.18 - 76.6 1.92 370
22 - 600 62.1 1250 1500 0.87 18.3 6.18 - 76.6 1.92 370
42 91 2700 - 221 3200 1700 0.0504 0.82 8.16 - 91.3 2.2 3.95
90 - 3000 221 3200 1700 0.0504 0.82 8.16 - 91.3 2.2 3.95
Z4-180-41 50 1350 - 140 3000 1700 0.159 3.2 8.03 - 87.1 2.2 3.95
55 - 1500 140 3000 1700 0.159 3.2 8.03 - 87.1 2.2 3.95
41 27 670 - 80.6 2000 1700 0.0495 11.3 5.61 - 81.1 2.2 3.95
30 - 750 80.6 2000 1700 0.0495 11.3 5.61 - 81.1 2.2 3.95
12 99 2710 - 270 3000 1400 0.0373 0.78 7.91 - 91.6 3.68 470
110 - 3000 270 3000 1400 0.0373 0.78 7.91 - 91.6 3.68 470
Z4-200-11 40.5 900 - 117 2000 1400 0.267 7.9 7.07 - 85.5 3.68 470
45 - 1000 117 2000 1400 0.267 7.9 7.07 - 85.5 3.68 470
11 33 670 - 98.6 1600 1400 0.654 9.9 8.12 - 82.9 3.68 470
37 - 750 98.6 1600 1400 0.654 9.9 8.12 - 82.9 3.68 470
11 19.5 450 - 61.6 1000 1400 0.839 23.3 12 - 77.4 3.68 470
22 - 500 61.6 1000 1400 0.839 23.3 12 - 77.4 3.68 470
Z4-200-21 67 1350 - 188 3000 1500 0.094 2.6 9.84 - 89.6 4.2 515
75 - 1500 188 3000 1500 0.094 2.6 9.84 - 89.6 4.2 515
27 540 - 82.1 1000 1500 0.53 15.3 9.3 - 80.4 4.2 515
30 - 600 82.1 1000 1500 0.53 15.3 9.3 - 80.4 4.2 515

Type

 Rated power Rated speed Rated current Speed with Field Weakened Exciting power Armature circuit resistance Armature circuit resistance Magnetic inductance External inductance Efficiency GD2 Moment of Inertia Weight
400V 440V
KW r/min A r/min W Ω(20℃) mH H mH % kg·m2 kg
32 119 2710 - 322 3200 1360 0.0318 0.74 0.74 - 92.4 4.8 565
132 - 3000 322 3200 1360 0.0318 0.74 0.74 - 92.4 4.8 565
31 81 1350 - 224 2800 1360 0.0754 2.5 8.2 - 89.8 4.8 565
90 - 1500 224 2800 1360 0.0754 2.5 8.2 - 89.8 4.8 565
31 49.5 900 - 140 2000 1360 0.173 4.5 8.7 - 87.1 4.8 565
55 - 1000 140 2000 1360 0.173 4.5 8.7 - 87.1 4.8 565
Z4-200-31 40.5 670 - 118 1400 1360 0.295 8 8.53 - 84.1 4.8 565
45 - 750 118 1400 1360 0.295 8 8.53 - 84.1 4.8 565
31 33 540 - 99.5 1200 1360 0.403 11.4 8.67 - 82 4.8 565
37 - 600 99.5 1200 1360 0.403 11.4 8.67 - 82 4.8 565
31 27 450 - 82.7 750 1360 0.575 16.5 8.44 - 79.5 4.8 565
30 - 500 82.7 750 1360 0.575 16.5 8.44 - 79.5 4.8 565
  99 1360 - 275 3000 2200 0.065 1.9 6.15 - 89.4 5 680
110 - 1500 275 3000 2200 0.065 1.9 6.15 - 89.4 5 680
  67 900 - 194 2000 2200 0.151 4.6 11.3 - 86.5 5 680
75 - 1000 194 2000 2200 0.151 4.6 11.3 - 86.5 5 680
Z4-225-11 49 680 - 145 1300 2200 0.239 8.1 5.9 - 84 5 680
55 - 750 145 1300 2200 0.239 8.1 5.9 - 84 5 680
  40 540 - 122 1200 2200 0.362 11.3 5.93 - 80.8 5 680
45 - 600 122 1200 2200 0.362 11.3 5.93 - 80.8 5 680
  33 450 - 102 1000 2200 0.472 14.1 6.24 - 78.8 5 680
37 - 500 102 1000 2200 0.472 14.1 6.24 - 78.8 5 680
Z4-225-21 49 540 - 147 1000 2130 0.262 8.9 5.66 - 82.4 5.6 735
55   600 147 1000 2130 0.262 8.9 5.66 - 82.4 5.6 735
40 450 - 125 1000 2130 0.397 12.8 5.49 - 78.9 5.6 735
45 - 500 125 1000 2130 0.397 12.8 5.49 - 78.9 5.6 735
Z4-225-31 119 1360 - 325 2400 2360 0.0562 1.4 9.75 - 90.5 6.2 810
132 - 1500 325 2400 2360 0.0562 1.4 9.75 - 90.5 6.2 810
81 900 - 227 2000 2360 0.096 3.2 5.27 - 88 6.2 810
90 - 1000 227 2000 2360 0.096 3.2 5.27 - 88 6.2 810
67 680 - 195 2250 2360 0.153 4.8 5.56 - 85.1 6.2 810
75 - 750 195 2250 2360 0.153 4.8 5.56 - 85.1 6.2 810



Type

 Rated power Rated speed Rated current Speed with Field Weakened Exciting power Armature circuit resistance Armature circuit resistance Magnetic inductance External inductance Efficiency GD2 Moment of inertia  Weight
400V 440V
KW r/min A r/min W Ω(20℃) mH H mH % kg·m2 kg
Z4-250-12 144 1360 - 397 2100 2560 0.0392 0.83 4.97 - 90.3 8.8 880
160 - 1500 397 2100 2560 0.0392 0.83 4.97 - 90.3 8.8 880
11 99 900 - 280 2000 2560 0.0866 2.3 8.14   88.1 8.8 880
110 - 1000 280 2000 2560 0.0866 2.3 8.14   88.1 8.8 880
Z4-250-21 167 1360 - 459 2200 2400 0.0325 0.86 5.73 - 90.5 10 960
185 - 1500 459 2200 2400 0.0325 0.86 5.73 - 90.5 10 960
81 680 - 230 2250 2400 0.131 3.6 5.63   85.2 10 960
90 - 750 230 2250 2400 0.131 3.6 5.63   85.2 10 960
Z4-250-31 67 540 - 197 2000 2400 0.171 4 6.13 - 84.1 11.2 1060
75 - 600 197 2000 2400 0.171 4 6.13 - 84.1 11.2 1060
49 450 - 147 1500 2400 0.256 5.8 6.08 - 82.2 11.2 1060
55 - 500 147 1500 2400 0.256 5.8 6.08 - 82.2 11.2 1060
180 1360 - 492 2400 2400 0.0274 0.82 7.22 - 91.5 11.2 1060
200   1500 492 2400 2400 0.0274 0.82 7.22 - 91.5 11.2 1060
119 900 - 332 2000 2400 0.0608 1.6 7.46 - 89.1 11.2 1060
132 - 1000 332 2000 2400 0.0608 1.6 7.46 - 89.1 11.2 1060
41 99 680 - 282 1600 2990 0.0957 2.6 5.66 - 86.9 12.8 1170
110 - 750 282 1600 2990 0.0957 2.6 5.66 - 86.9 12.8 1170
41 198 1360 - 540 2400 2990 0.0235 0.69 6.74 - 91.7 12.8 1170
220 - 1500 540 2400 2990 0.0235 0.69 6.74 - 91.7 12.8 1170
Z4-250-42 144 900 - 402 2000 2990 0.0484 1.4 6.93 - 89.2 12.8 1170
160 - 1000 402 2000 2990 0.0484 1.4 6.93 - 89.2 12.8 1170
41 81 540 - 234 1600 2990 0.138 4.4 4.65 - 85 12.8 1170
90 - 600 234 1600 2990 0.138 4.4 4.65 - 85 12.8 1170
41 67 450 - 199 1500 2990 0.181 4.8 7.13 - 83.5 12.8 1170
75 - 500 199 1500 2990 0.181 4.8 7.13 - 83.5 12.8 1170
Z4-280-11 226 1355 - 615 2000 2540 0.0214 0.65 6.62 - 91.6 16.4 1230
250 - 1500 615 2000 2540 0.0214 0.65 6.62 - 91.6 16.4 1230
22 253 1355 - 684 1800 2880 0.0167 0.56 5.82 - 92.1 18.4 1350
280 - 1500 684 1800 2880 0.0167 0.56 5.82 - 92.1 18.4 1350
Z4-280-21 180 900 - 498 2000 2880 0.0375 1.2 5.87   90.1 18.4 1350
200 - 1000 498 2000 2880 0.0375 1.2 5.87   90.1 18.4 1350



Type

 Rated power



Rated speed

 Rated current

Speed with

Field

Wakened

 Exciting power Armature circuit resistance Armature circuit resistance

Magnetic

inductance

 External inductance Efficiency

 GD2 Moment

of inertia

 Weight
400V 440V
KW r/min A r/min W Ω(20℃) mH H mH % kg·m2 kg
Z4-280-21 119 675 - 332 1600 2880 0.0649 2.2 5.77 - 88.6 18.4 1350
132 - 750 332 1600 2880 0.0649 2.2 5.77 - 88.6 18.4 1350
21 99 540 - 284 1500 2880 0.0968 2.9 6 - 86 18.4 1350
110 - 600 284 1500 2880 0.0968 2.9 6 - 86 18.4 1350
41 284 1360 - 767 1800 3210 0.0149 0.56 6.88 - 92.6 21.2 1500
315 - 1500 767 1800 3210 0.0149 0.56 6.88 - 92.6 21.2 1500
41 198 900 - 544 2000 3210 0.0308 1 5.54 - 90.6 21.2 1500
220 - 1000 544 2000 3210 0.0308 1 5.54 - 90.6 21.2 1500
Z4-250-42 144 675 - 401 1700 3210 0.052 1.9 5.53 - 89.1 21.2 1500
160 - 750 401 1700 3210 0.052 1.9 5.53 - 89.1 21.2 1500
41 118 540 - 338 1000 3210 0.0829 2.4 5.81 - 86.8 21.2 1500
132 - 600 338 1000 3210 0.0829 2.4 5.81 - 86.8 21.2 1500
41 80 450 - 234 1000 3210 0.137 5 6.61 - 85.4 21.2 1500
90 - 500 234 1000 3210 0.137 5 6.61 - 85.4 21.2 1500
42 225 900 - 616 1800 3590 0.0249 0.9 5.21 - 91.1 24 1650
250 - 1000 616 1800 3590 0.0249 0.9 5.21 - 91.1 24 1650
Z4-280-41 166 675 - 463 1900 3590 0.0438 1.6 5.14 - 89.4 24 1650
185 - 750 463 1900 3590 0.0438 1.6 5.14 - 89.4 24 1650
41 98 450 - 282 1000 3590 0.0946 3.5 9 - 86.9 24 1650
110 - 500 282 1000 3590 0.0946 3.5 9 - 86.9 24 1650
- 144 540 - 409 1900 3800 0.0692 0.96 7.53 - 86.4 21.2 1900
160 - 600 409 1900 3800 0.0692 0.96 7.53 - 87.4 21.2 1900
Z4-315-11 118 450 - 342 1600 3800 0.0971 1.7 7.01 - 84.4 21.2 1900
132 - 500 342 1600 3800 0.0971 1.7 7.01 - 86.3 21.2 1900
- 98 360 - 292 1200 3800 0.137 2.1 9.92 - 81.7 21.2 1900
110 - 400 292 1200 3800 0.137 2.1 9.92 - 84.3 21.2 1900
- 321 1360 - 864 1800 3800 0.0138 0.5 6.48 - 92.2 21.2 1900
355 - 1500 864 1800 3800 0.0138 0.5 6.48 - 92.6 21.2 1900
Z4-315-12 253 900 - 687 1600 3800 0.0224 0.33 5.07 - 90.4 21.2 1900
280 - 1000 687 1600 3800 0.0224 0.33 5.07 - 91.6 21.2 1900
- 180 680 - 501 1900 3800 0.0436 0.6 4.97 - 88.4 21.2 1900
200 - 750 501 1900 3800 0.0436 0.6 4.97 - 89.4 21.2 1900



Type

Rated

power

 Rated speed Rated current

Speed

with Field Weakened

 Exciting power Armature circuit resistance Armature circuit resistance

Magnetic

inductance

 External inductance Efficiency

 GD2 Moment

of

inertia

  Weight
400V 440V
KW r/min A r/min W Ω(20℃) mH H mH % kg·m2 kg
Z4-315-21 166 540 - 466 1600 4195 0.0518 0.83 5.13 - 87.2 24 2090
185 - 600 466 1600 4195 0.0518 0.83 5.13 - 88.5 24 2090
143 450 - 413 1500 4195 0.0758 1.1 5.51 - 84.7 24 2090
160 - 500 413 1500 4195 0.0758 1.1 5.51 - 86 24 2090
Z4-315-22 284 900 - 770 1600 4195 0.0188 0.25 5.15 - 91 24 2090
315 - 1000 770 1600 4195 0.0188 0.25 5.15 - 91.9 24 2090
225 680 - 623 1600 4195 0.0337 0.54 5.11 - 88.7 24 2090
250 - 750 623 1600 4195 0.0337 0.54 5.11 - 89.6 24 2090
Z4-315-31 118 360 - 343 1200 3960 0.0981 1.5 6.37 - 83.2 27.2 2300
132 - 400 343 1200 3960 0.0981 1.5 6.37 - 85.3 27.2 2300
Z4-315-32 320 900 - 869 1600 3960 0.0149 0.22 6.81 - 91 27.2 2300
355 - 1000 869 1600 3960 0.0149 0.22 6.81 - 92 27.2 2300
252 680 - 700 1600 3960 0.0314 0.59 5.86 - 89.1 27.2 2300
280 - 750 700 1600 3960 0.0314 0.59 5.86 - 89.8 27.2 2300
180 540 - 501 1500 3960 0.0454 0.68 6.45 - 89.2 27.2 2300
200 - 600 501 1500 3960 0.0454 0.68 6.45 - 89.4 27.2 2300
Z4-315-41 166 450 - 468 1500 4590 0.055 0.9 7.58 - 87.3 30.8 2530
185 - 500 468 1500 4590 0.055 0.9 7.58 - 88.3 30.8 2530
143 360 - 416 1200 4590 0.0809 1.3 5.03 - 84 30.8 2530
160 - 400 416 1200 4590 0.0809 1.3 5.03 - 85.3 30.8 2530
Z4-315-42 361 900 - 972 1400 4590 0.013 0.24 7.88 - 92.1 30.8 2530
400 - 1000 972 1400 4590 0.013 0.24 7.88 - 92.7 30.8 2530
284 680 - 779 1600 4590 0.0241 0.48 4.74 - 90 30.8 2530
315 - 750 779 1600 4590 0.0241 0.48 4.74 - 90.7 30.8 2530
225 540 - 628 1600 4590 0.0369 0.63 4.98 - 88.3 30.8 2530
250 - 600 628 1600 4590 0.0369 0.63 4.98 - 89 30.8 2530
Z4-355-11 253 540 - 694 1500 4490 0.0291 0.66 5.29 - 89.2 42 2900
280 - 600 694 1500 4490 0.0291 0.66 5.29 - 90.3 42 2900
180 450 - 507 1500 4490 0.0536 1.1 18.6 - 87.6 42 2900
200 - 500 507 1500 4490 0.0536 1.1 18.6 - 88.9 42 2900
Z4-355-12 406 900 - 1093 1500 4490 0.0122 0.26 7.3 - 91.8 42 2900
450 - 1000 1093 1500 4490 0.0122 0.26 7.3 - 92.8 42 2900

Type

Rated

power

 Rated speed Rated current

Speed

with Field Weakened

 Exciting power Armature circuit resistance Armature circuit resistance

Magnetic

inductance

 External inductance Efficiency

 GD2 Moment

of inertia

 Weight
400V 440V
KW r/min A r/min W Ω(20℃) mH H mH % kg·m2 kg
Z4-355-12 321 680 - 874 1500 4490 0.0207 0.43 5.29 - 90.4 42 2900
355 - 750 874 1500 4490 0.0207 0.43 5.29 - 91.2 42 2900
166 360 - 478 1200 4490 0.0683 1.1 5.71 - 85.1 42 2900
185 - 400 478 1200 4490 0.0683 1.1 5.71 - 86.1 42 2900
Z4-355-21 180 360 - 512 1200 4250 0.0586 1.2 9.27 - 86.3 46 3180
200 - 400 512 1200 4250 0.0586 1.2 9.27 - 87.5 46 3180
Z4-355-22 361 680 - 982 1600 4250 0.017 0.32 6.78 - 90.8 46 3180
400 - 750 982 1600 4250 0.017 0.32 6.78 - 91.7 46 3180
284 540 - 782 1500 4250 0.0264 0.59 6.41 - 39.5 46 3180
315 - 600 782 1500 4250 0.0264 0.59 6.41 - 90.5 46 3180
225 450 - 626 1600 4250 0.0373 0.91 8.84 - 88.4 46 3180
250 - 500 626 1600 4250 0.0373 0.91 8.84 - 89.5 46 3180
Z4-355-31 197 360 - 556 1200 5840 0.0467 0.96 8.26 - 86.6 46 3180
220 - 400 556 1200 5840 0.0467 0.96 8.26 - 88.4 46 3180
Z4-355-32 406 680 - 1098 1100 5840 0.0133 0.28 4.62 - 91.3 52 3500
450 - 750 1098 1100 5840 0.0133 0.28 4.62 - 92.1 52 3500
320 540 - 875 1600 5840 0.0207 0.5 4.84 - 89.9 52 3500
355 - 600 875 1600 5840 0.0207 0.5 4.84 - 91 52 3500
284 450 - 787 1500 5840 0.0289 0.65 4.5 - 88.3 52 3500
315 - 500 875 1600 5840 0.0207 0.5 4.5 - 89.5 52 3500
Z4-355-42 361 540 - 982 1300 6470 0.0171 0.37 4.35 - 90.5 60 3850
400 - 600 982 1300 6470 0.0171 0.37 4.35 - 91.2 60 3850
320 450 - 890 1200 6470 0.0262 0.56 4.23 - 88.9 60 3850
355 - 500 890 1200 6470 0.0262 0.56 4.23 - 89.2 60 3850
225 360 - 627 1200 6470 0.0377 0.85 5.59 - 87.5 60 3850
250 - 400 627 1200 6470 0.0377 0.85 5.59 - 88.8 60 3850

Type

Rated

power

 Rated speed Rated current

Speed

with Field Weakened

 Exciting power  Armature circuit resistance Armature circuit resistance

Magnetic

inductance

 Efficiency

 GD2 Moment

of inertia

 Weight
400V 440V
KW r/min A r/min W Ω(20℃) mH H % kg·m2 kg
22 430 680 - 1163 1400 5720 0.0139 0.33 7.85 90.8 74 4520
475 - 750 1163 1400 5720 0.0139 0.33 7.85 92 74 4520
Z4-400-21 235 360 - 675 1200 5720 0.0497 1 7.3 84.8 74 4520
260 - 400 675 1200 5720 0.0497 1 7.3 86.3 74 4520
21 180 270 - 537 900 5720 0.0804 1.6 7.44 81.8 74 4520
200 - 300 537 900 5720 0.0804 1.6 7.44 83.1 74 4520
32 480 680 - 1391 1400 6450 0.0112 0.3 9.57 91.2 84 4920
530 - 750 1391 1400 6450 0.0112 0.3 9.57 92.5 84 4920
32 406 540 - 1108 1300 6450 0.0162 0.35 4.51 89.9 84 4920
450 - 600 1108 1300 6450 0.0162 0.35 4.51 91.1 84 4920
Z4-400-32 344 450 - 952 1400 6450 0.0248 0.58 6 88.1 84 4920
380 - 500 952 1400 6450 0.0248 0.58 6 89.5 84 4920
31 253 360 - 717 1200 6450 0.0382 0.82 6.11 86 84 4920
280 - 400 717 1200 6450 0.0382 0.82 6.11 87.5 84 4920
31 197 270 - 584 900 6450 0.0659 1.5 5.89 82.8 84 4920
220 - 300 584 900 6450 0.0659 1.5 5.89 84 84 4920
42 545 680 - 1500 1200 7150 0.0125 0.28 7.2 91 94 5320
600 - 750 1500 1200 7150 0.0125 0.28 7.2 91.4 94 5320
42 430 540 - 1163 1300 7150 0.0134 0.32 5.54 90.8 94 5320
475 - 600 1163 1300 7150 0.0134 0.32 5.54 92 94 5320
Z4-400-42 361 540 - 995 1400 7150 0.0201 0.47 6.86 88.6 94 5320
400 - 500 995 1400 7150 0.0201 0.47 6.86 90 94 5320
41 321 360 - 893 1200 7150 0.0274 0.73 5.41 87.7 94 5320
355 - 400 893 1200 7150 0.0274 0.73 5.41 89 94 5320
41 225 270 - 650 900 7150 0.0508 1.2 5.38 84 94 5320
250 - 300 650 900 7150 0.0508 1.2 5.38 85.4 94 5320
22 472 540 - 1286 1200 6550 0.0133 0.29 10.2 90.8 138 5620
520 - 600 1286 1200 6550 0.0133 0.29 10.2 92.1 138 5620
Z4-450-22 408 450 - 1114 1400 6550 0.0159 0.41 7.99 90 138 5620
450 - 500 1114 1400 6550 0.0159 0.41 7.99 91.3 138 5620
22 362 360 - 1010 1200 6550 0.0232 61 5.79 88.1 138 5620
400 - 400 1010 1200 6550 0.0232 61 5.79 89.4 138 5620
21 253 270 - 720 900 6550 0.0415 1 5.82 85.8 138 5620
280 - 300 720 900 6550 0.0415 1 5.82 87.1 138 5620



Type

Rated

power

 Rated speed Rated current

Speed

with Field Weakened

 Exciting power  Armature circuit resistance Armature circuit resistance

Magnetic

inductance

 Efficiency

 GD2 Moment

of inertia

 Weight
400V 440V
KW r/min A r/min W Ω(20℃) mH H % kg·m2 kg
32 480 540 - 1309 1200 7100 0.0134 0.39 19.6 90.8 156 6000
530 - 600 1309 1200 7100 0.0134 0.39 19.6 92 156 6000
32 430 450 - 1167 1300 7100 0.0145 0.32 7.36 90 156 6000
475 - 500 1167 1300 7100 0.0145 0.32 7.36 91.4 156 6000
Z4-450-32 408 360 - 1130 1200 7100 0.0205 0.53 7.17 88.5 156 6000
450 - 400 1130 1200 7100 0.0205 0.53 7.17 89.7 156 6000
32 284 270 - 811 900 7100 0.0342 0.83 4.8 58.9 156 6000
315 - 300 811 900 7100 0.0342 0.83 4.8 87.1 156 6000
31 200 180 - 595 600 7100 0.0751 1.9 9.09 81.3 156 6000
220 - 200 595 600 7100 0.0751 1.9 9.09 82.6 156 6000
42 545 540 - 1492 1100 7800 0.0134 0.51 28.2 90.3 174 6700
600 - 600 1492 1100 7800 0.0134 0.51 28.2 91.5 174 6700
42 480 450 - 1317 1100 7800 0.0145 0.43 18.6 90 174 6700
530 - 500 1317 1100 7800 0.0145 0.43 18.6 91.4 174 6700
Z4-450-42 430 360 - 1191 1200 7800 0.0178 0.42 5.85 88.9 174 6700
475 - 400 1191 1200 7800 0.0178 0.42 5.85 90 174 6700
42 320 270 - 908 900 7800 0.0285 0.81 5.62 86.8 174 6700
355 - 300 908 900 7800 0.0285 0.81 5.62 88.1 174 6700
41 225 180 - 671 600 7800 0.0612 1.7 5.73 81.7 174 6700
250 - 200 671 600 7800 0.0612 1.7 5.73 83 174 6700








Tags:

Z4 100-1 DC Motors

900RPM Three Phase Asynchronous Motor

2.2KW Three Phase Asynchronous Motor

Recommended Products
