H280 H355 Frame IMB3 Low Voltage 3 Phase IP23 Motor Y280M 2-132

  • H280 H355 Frame IMB3 Low Voltage 3 Phase IP23 Motor Y280M 2-132
Place of Origin China
Brand Name Simo Motor
Certification 3C, CE, GOST, CNAS,UL,QMS,EMS
Model Number Y Series IP23 Low Voltage Three-phase Asynchronous Motor
Minimum Order Quantity 1
Packaging Details Solid Wood Package
Delivery Time 50-60 Working Days
Payment Terms T/T
Product Details
Type Y Series Y280M 2-132 Three-phase Asynchronous Motor Frame H280-H355
Voltage 380V No. Of Poles 2P, 4P, 6P, 8P, 10P, 12P
Production Grade IP23 Power 55kW-355kW
Frequency 50Hz Standard JB
Cooling Type IC01 Mounting Type IM B3, IM B35, IM B5, IM V1, Etc
High Light

H355 Frame IP23 Motor

,

2-132 low voltage 3 phase motor

,

IMB3 Low Voltage 3 Phase Motor
Leave a Message
Product Description

Y280M-2-132-IP23-Class F-IM B3 Low Voltage Three-phase Asynchronous Motor



Motor Parameter



Type: Y280M-2-132-IP23-Class F-IM B3 Low Voltage Three-phase Asynchronous Motor
Rated Power 132 Locked Current/Rated Current 6.8
Rated Current 238 Max. Torque/Rated Torque 2.2
Speed 2965 Noise Level 99
Efficiency 92.5 Vibration Speed 4.5
Power Factor 0.90 Weight
Locked Torque/Rated Torque 1.6



Technical Advantages

Y280M-2-132-IP23-Class F-IM B3 Low Voltage Three-phase Asynchronous Motor has characteristics of 132 kW of rated power, 238 A of rated current, 2965 r/min of speed, 92.5 % of efficiency, 0.90 Cos φ of power factor. Its locked torque/ rated torque is 1.6, locked current/ rated current is 6.8, Max. torque/ rated torque is 2.2, Noise level is 99 and vibration speed is 4.5.



This series of motor is general squirrel-cage three phase motor, which is a newly designed upgrading motor. Its power grade and mounting dimension conform to IEC standard.



Product Features

This series of motor has advantages of high efficiency, large starting torque, etc.



Operation Conditions

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).



Wide Application

This series of motor mainly applies in much cleaner areas which are free from inflammable, explosive and corrosive gases. It is applied to drive all kinds of general machinery equipment, such as machine tool, pump, fan, compressor and transportation machinery, etc.



Profile Display

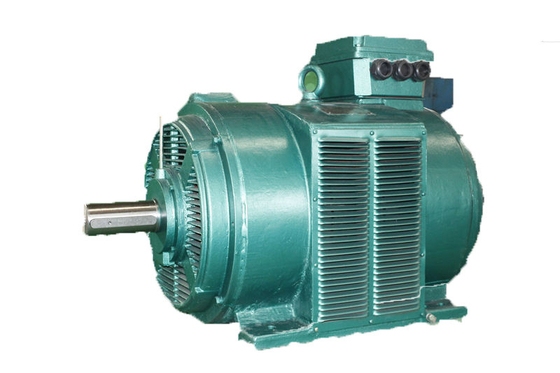

H280 H355 Frame IMB3 Low Voltage 3 Phase IP23 Motor Y280M 2-132 0

Our Advantages

We are a developing and manufacturing enterprise specialized in large and medium, high and low voltage, AC and DC motors, synchronous motors, high efficiency motors and explosion-proof motors; a power system supplier intergrated motor design and manufacturing, mechanical processing, model manufacturing and automatic complete engineering. Our products mainly apply in electric power, coal, petroleum, mining exploring, metallurgy, railways, transportation, chemistry, agriculture, hydraulic power, navigation and high-tech areas, which is the motor supporting manufacturer specially designated by the Ministry of Railways.



Service Expanded

We proposed the service concept of "Customization" in accordance with the actual needs of customers in case of any special requirements. you can put forward special requirements and we will design an exclusive scheme as per your requirements. contact us of specific design and price.



Available Types of Y-IP23



Type

Rated Power

Rated Current

Speed

Efficiency

Power Factor



Locked Torque



Locked Current



Max. Torque

 Noise Level Db (A)



Vibration Speed

mm/s



Weight
Rated Torque Rated Current Rated Torque



Class 1



Class 2
 Synchronous Speed 3000r/mim
Y280M-2 132 238 2965 92.5 0.90 1.6 6.8 2.2 99 4.5
Synchronous Speed 1500r/mim
Y280S-4 110 202 1480 92.5 0.88 1.7 6.8 2.2 93 2.8 4.5
Y280M-4 132 241 1480 93 0.88 1.8 6.8 2.2 96 2.8 4.5
Synchronous Speed 1000r/mim
Y280S-6 75 141 985 91.5 0.87 1.8 6.5 2 90 2.8 4.5
Y280M-6 90 167 985 92 0.88 1.8 6.5 2 90 2.8 4.5
Synchronous Speed 750r/mim
Y280S-8 55 112 740 91 0.80 1.8 6 2 81 2.8 4.5
Y280M-8 75 151 740 91.5 0.81 1.8 6 2 90 2.8 4.5
Synchronous Speed 3000r/mim
Y315S-2 160 292 2970 92.5 0.90 1.4 6.8 2.0 105 4.5
Y315M1-2 185 338 2960 92.5 0.90 1.4 6.8 2.0 105 4.5
Y315M2-2 200 363 2970 93.0 0.90 1.4 6.8 2.0 105 4.5
Y315M3-2 220 397 2960 93.5 0.90 1.4 6.8 2.0 105 4.5
Y315M4-2 250 460 2970 93.8 0.88 1.2 6.8 2.0 107 4.5
Y355M2-2 280 514 2970 93.8 0.88 1.0 6.5 1.8 107 4.5
Y355M3-2 315 572 2970 94.0 0.89 1.0 6.5 1.8 107 4.5
Y355L1-2 355 643 2980 94.3 0.89 1.0 6.5 1.8 107 4.5
Synchronous Speed 1500r/mim
Y315S-4 160 297 1480 93.0 0.88 1.4 6.8 2.0 103 2.8 4.5
Y315M1-4 185 342 1480 93.5 0.88 1.4 6.8 2.0 1.3 2.8 4.5
Y315M2-4 200 368 1480 93.8 0.88 1.4 6.8 2.0 103 2.8 4.5
Y315M3-4 220 404 1480 94.0 0.88 1.4 6.8 2.0 1.3 2.8 4.5
Y315M4-4 250 458 1480 94.3 0.88 1.2 6.8 2.0 106 2.8 4.5
Y355M2-4 280 507 1480 94.3 0.90 1.2 6.5 1.8 106 2.8 4.5
Y355M3-4 315 564 1480 94.3 0.90 1.0 6.5 1.8 106 2.8 4.5
Y355L1-4 355 634 1480 94.5 0.90 1.0 6.5 1.8 106 2.8 4.5
Synchronous Speed 1000r/mim
Y315S-6 110 207 980 93.0 0.87 1.4 6.5 1.8 97 2.8 4.5
Y315M1-6 132 247 980 93.5 0.87 1.3 6.5 1.8 100 2.8 4.5
Y315M2-6 160 298 980 93.8 0.87 1.3 6.5 1.8 100 2.8 4.5
Y355M1-6 185 344 990 94.0 0.87 1.1 6.0 1.8 100 2.8 4.5
Y355M2-6 200 372 990 94.0 0.87 1.1 60. 1.8 100 2.8 4.5
Y355M3-6 220 404 990 94.0 0.88 1.1 6.0 1.8 100 2.8 4.5
Y355M4-6 250 458 990 94.3 0.88 1.1 6.0 1.8 103 2.8 4.5
Y355L1-6 280 513 990 94.3 0.88 1.1 6.0 1.8 103 2.8 4.5
Synchronous Speed 750r/mim
Y315S-8 90 183 740 92.2 0.81 1.3 6.0 1.8 93 2.8 4.5
Y315M1-8 110 222 740 92.8 0.81 1.3 6.0 1.8 93 2.8 4.5
Y315M2-8 132 265 740 93.3 0.81 1.3 6.0 1.8 97 2.8 4.5
Y355M2-8 160 321 740 93.5 0.81 1.1 5.5 1.8 97 2.8 4.5
Y355M3-8 185 371 740 93.5 0.81 1.1 5.5 1.8 97 2.8 4.5
Y355M4-8 200 401 740 94.0 0.81 1.1 5.5 1.8 97 2.8 4.5
Y355L1-8 220 439 740 94.0 0.81 1.1 5.5 1.8 97 2.8 4.5
Y355L2-8 250 512 740 94.0 0.79 1.1 5.5 1.8 99 2.8 4.5
Synchronous Speed 600r/mim
Y315S-10 55 123 590 91.5 0.74 1.2 5.5 1.8 93 2.8 4.5
Y315M1-10 75 165 590 92.0 0.75 1.2 5.5 1.8 93 2.8 4.5
Y315M2-10 90 196 590 92.0 0.76 1.2 5.5 1.8 93 2.8 4.5
Y355M2-10 110 232 590 92.5 0.78 1.0 5.5 1.8 93 2.8 4.5
Y355M3-10 132 274 590 92.8 0.79 1.0 5.5 1.8 97 2.8 4.5
Y355L1-10 160 332 590 92.8 0.79 1.0 5.5 1.8 97 2.8 4.5
Y355L2-10 185 383 590 93.0 0.79 1.0 5.5 1.8 97 2.8 4.5
Synchronous Speed 500r/mim
Y355M4-12 90 201 490 92.0 0.74 1.0 5.5 1.8 93 2.8 4.5
Y355L1-12 110 241 490 92.3 0.75 1.0 5.5 1.8 93 2.8 4.5
Y355L2-12 132 289 490 92.5 0.75 1.0 5.5 1.8 97 2.8 4.5
