6kV IP54-Class F-IM B3 Three Phase Asynchronous Motor For Blowers

  • 6kV IP54-Class F-IM B3 Three Phase Asynchronous Motor For Blowers
Place of Origin China
Brand Name Simo Motor
Certification 3C, CE, GOST, CNAS, UL, QMS, EMS
Model Number Y2 Series HV Three-phase Asynchronous Motor
Minimum Order Quantity 1
Packaging Details Solid Wood Package
Delivery Time 50-60 working days
Payment Terms T/T
Product Details
Type Three Phase Asynchronous Motor Frame H355-H630
Voltage 6kV, 10kV, Etc No. Of Poles 2P, 4P, 6P, 8P, 10P, 12P
Efficiency Grade Grade 3 Protection Grade IP44, IP54, IP55
Power 185kW-3150kW Frequency 50Hz
Standard JB/T Cooling Type IC411
Usage Blowers
High Light

6kV Three Phase Asynchronous Motor

,

IP54 Three Phase Asynchronous Motor

,

B3 Three Phase Asynchronous Motor
Leave a Message
Product Description

6kV IP54-Class F-IM B3 Three Phase Asynchronous Motor For Blowers



Three Phase Asynchronous Motor Technical Advantages

This series of high and low voltage three-phase asynchronous motor is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards.



Three Phase Asynchronous Motor Features

This series of Three Phase Asynchronous Motor has advantages of compact structure, light weight, high efficiency, energy-saving, low noise and vibration, high reliability, long service life and convenient installation and maintenance, etc.



Operation Conditions

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

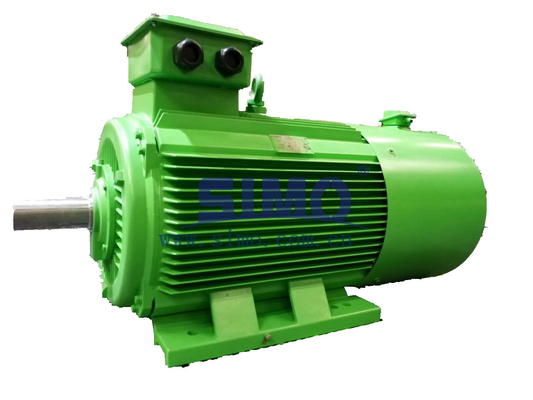

Three Phase Asynchronous Motor Display

6kV IP54-Class F-IM B3 Three Phase Asynchronous Motor For Blowers 0



Available Types of Y2







Type

Rated Power

kW

Rated Current

A

Rated

Speed

r/min

Efficiency

%

Power Factor

Cosφ



Locked Torque



Locked Current



Max. Torque



Load moment of inertia

kg.m2

Weight

kg



Rated

Torque



Rated

Current



Rated Torque
Y2-3551-2 185 22.7 2985 92.2 0.85 0.7 7.0 2.0 12 2350
Y2-3552-2 200 24.5 2985 92.4 0.85 0.7 7.0 2.0 13 2410
Y2-3553-2 220 26.9 2985 92.5 0.85 0.7 7.0 2.0 14 2460
Y2-3554-2 250 30.6 2985 92.6 0.85 0.7 7.0 2.0 16 2500
Y2-3555-2 280 33.3 2985 92.9 0.87 0.7 7.0 2.0 18 2540
Y2-3556-2 315 37.4 2985 93.2 0.87 0.7 7.0 2.0 19 2600
Y2-3557-2 355 42.0 2985 93.4 0.87 0.7 7.0 2.0 21 2650
Y2-3558-2 400 47.1 2985 93.9 0.87 0.7 7.0 2.0 24 2720
Y2-4001-2 450 52.9 2985 94.1 0.87 0.7 7.0 2.0 26 3070
Y2-4002-2 500 57.9 2985 94.4 0.88 0.7 7.0 2.0 29 3190
Y2-4003-2 560 64.8 2985 94.5 0.88 0.7 7.0 2.0 31 3350
Y2-4501-2 630 72.8 2985 94.6 0.88 0.7 7.0 2.0 34 3925
Y2-4502-2 710 82.0 2985 94.7 0.88 0.7 7.0 2.0 38 4150
Y2-4503-2 800 91.0 2985 95.1 0.89 0.7 7.0 2.0 41 4320
Y2-5001-2 900 102.2 2985 95.2 0.89 0.7 7.0 2.0 45 6510
Y2-5002-2 1000 113.5 2985 95.3 0.89 0.7 7.0 2.0 49 6630
Y2-5003-2 1120 126.9 2985 95.4 0.89 0.7 7.0 2.0 53 6720
Y2-5004-2 1250 139.8 2985 95.6 0.90 0.7 7.0 2.0 57 6850
Y2-5005-2 1400 156.4 2985 95.7 0.90 0.7 7.0 2.0 62 7020
Y2-5601-2 1600 178.6 2985 95.8 0.90 0.7 7.0 2.0 67 10500
Y2-5602-2 1800 200.9 2985 95.8 0.90 0.7 7.0 2.0 72 10850
Y2-5603-2 2000 220.1 2985 96.1 0.91 0.7 7.0 2.0 77 11100
Y2-6301-2 2240 246.2 2985 96.2 0.91 0.7 7.0 2.0 81 12980
Y2-6302-2 2500 274.8 2985 96.2 0.91 0.7 7.0 2.0 86 13020
Y2-6303-2 2800 307.5 2985 96.3 0.91 0.7 7.0 2.0 90 13200
Y2-3551-4 185 22.6 1485 92.6 0.85 0.8 6.5 2.0 68 2725
Y2-3552-4 200 24.4 1485 92.9 0.85 0.8 6.5 2.0 73 2770
Y2-3553-4 220 26.8 1485 93.0 0.85 0.8 6.5 2.0 80 2810
Y2-3554-4 250 30.4 1485 93.1 0.85 0.8 6.5 2.0 90 2835
Y2-3555-4 280 34.0 1485 93.2 0.85 0.8 6.5 2.0 99 2865
Y2-3556-4 315 37.7 1485 93.4 0.86 0.8 6.5 2.0 110 2910
Y2-3557-4 355 42.4 1485 93.6 0.86 0.8 6.5 2.0 123 2950
Y2-3558-4 400 47.8 1485 93.7 0.86 0.8 6.5 2.0 136 3005
Y2-4001-4 450 53.6 1485 94.0 0.86 0.8 6.5 2.0 151 3420
Y2-4002-4 500 58.7 1485 94.2 0.87 0.8 6.5 2.0 165 3490
Y2-4003-4 560 65.6 1485 94.4 0.87 0.8 6.5 2.0 182 3670
Y2-4501-4 630 73.7 1485 94.6 0.87 0.8 6.5 2.0 202 4435
Y2-4502-4 710 82.8 1485 94.8 0.87 0.8 6.5 2.0 223 4650
Y2-4503-4 800 93.1 1485 95.0 0.87 0.8 6.5 2.0 247 4870
Y2-4504-4 900 104.7 1485 95.1 0.87 0.8 6.5 2.0 273 5010
Y2-5001-4 1000 116.2 1485 95.2 0.87 0.8 6.5 2.0 297 6770
Y2-5002-4 1120 130.0 1485 95.3 0.87 0.8 6.5 2.0 326 7020
Y2-5003-4 1250 143.1 1485 95.5 0.88 0.8 6.5 2.0 356 7340
Y2-5004-4 1400 160.3 1485 95.5 0.88 0.8 6.5 2.0 390 7560
Y2-5601-4 1600 183.0 1485 95.6 0.88 0.7 6.5 2.0 433 7900
Y2-5602-4 1800 205.7 1485 95.7 0.88 0.7 6.5 2.0 473 9850
Y2-5603-4 2000 225.2 1485 96.0 0.89 0.7 6.5 2.0 512 10090
Y2-5604-4 2240 252.0 1485 96.1 0.89 0.7 6.5 2.0 556 10860
Y2-6301-4 2500 281.0 1485 96.2 0.89 0.7 6.5 2.0 601 13020
Y2-6302-4 2800 314.7 1485 96.2 0.89 0.7 6.5 2.0 649 13180
Y2-6303-4 3150 353.3 1485 96.4 0.89 0.7 6.5 2.0 702 13400
Y2-3553-6 185 23.8 988 92.4 0.81 0.8 6.0 2.0 185 2910
Y2-3554-6 200 25.7 988 92.6 0.81 0.8 6.0 2.0 199 2940
Y2-3555-6 220 27.5 988 92.8 0.83 0.8 6.0 2.0 217 3050
Y2-3556-6 250 31.2 988 93.0 0.83 0.8 6.0 2.0 243 3110
Y2-3557-6 280 34.8 988 93.2 0.83 0.8 6.0 2.0 270 3160
Y2-3558-6 315 39.1 988 93.5 0.83 0.8 6.0 2.0 300 3155
Y2-4001-6 355 43.4 988 93.7 0.84 0.8 6.0 2.0 334 3560
Y2-4002-6 400 48.9 988 93.7 0.84 0.8 6.0 2.0 372 3620
Y2-4003-6 450 54.8 988 94.0 0.84 0.8 6.0 2.0 413 3690
Y2-4004-6 500 60.7 988 94.3 0.84 0.8 6.0 2.0 454 3740
Y2-4501-6 560 67.9 988 94.5 0.84 0.8 6.0 2.0 502 4535
Y2-4502-6 630 76.3 988 94.6 0.84 0.8 6.0 2.0 557 4750
Y2-4503-6 710 85.9 988 94.7 0.84 0.8 6.0 2.0 618 4970
Y2-5001-6 800 96.6 988 94.9 0.84 0.8 6.0 2.0 686 6870　
Y2-5002-6 900 107.1 988 95.1 0.85 0.8 6.0 2.0 759 7120
Y2-5003-6 1000 118.9 988 95.2 0.85 0.8 6.0 2.0 831 7440
Y2-5004-6 1120 133.0 988 95.3 0.85 0.8 6.0 2.0 915 7660
Y2-5601-6 1250 148.2 988 95.5 0.85 0.7 6.0 2.0 1004 10150
Y2-5602-6 1400 162.1 988 95.5 0.87 0.7 6.0 2.0 1103 10290
Y2-5603-6 1600 184.9 988 95.7 0.87 0.7 6.0 2.0 1232 10460
Y2-5604-6 1800 207.8 988 95.8 0.87 0.7 6.0 2.0 1356 10750
Y2-6301-6 2000 230.4 988 96.0 0.87 0.7 6.0 2.0 1475 13170
Y2-6302-6 2240 258.1 988 96.0 0.87 0.7 6.0 2.0 1613 13385
Y2-6303-6 2500 287.7 988 96.1 0.87 0.7 6.0 2.0 1757 13530
Y2-3555-8 185 25.0 743 92.3 0.77 0.8 5.5 2.0 370 2930
Y2-3556-8 200 26.7 743 92.5 0.78 0.8 5.5 2.0 398 2980
Y2-3557-8 220 29.3 743 92.6 0.78 0.8 5.5 2.0 434 3100
Y2-3558-8 250 32.8 743 92.8 0.79 0.8 5.5 2.0 488 3170
Y2-4001-8 280 36.7 743 93.0 0.79 0.8 5.5 2.0 541 3580
Y2-4002-8 315 41.2 743 93.2 0.79 0.8 5.5 2.0 603 3650
Y2-4003-8 355 46.3 743 93.3 0.79 0.8 5.5 2.0 672 3720
Y2-4004-8 400 51.5 743 93.5 0.80 0.8 5.5 2.0 749 3760
Y2-4501-8 450 57.8 743 93.6 0.80 0.8 5.5 2.0 833 4550
Y2-4502-8 500 63.1 743 94.2 0.81 0.8 5.5 2.0 916 4760
Y2-4503-8 560 70.5 743 94.3 0.81 0.8 5.5 2.0 1014 4980
Y2-5001-8 630 78.3 743 94.4 0.82 0.8 5.5 2.0 1126 6890
Y2-5002-8 710 88.3 743 94.4 0.82 0.8 5.5 2.0 1252 7150
Y2-5003-8 800 99.2 743 94.6 0.82 0.8 5.5 2.0 1392 7370
Y2-5601-8 900 111.5 743 94.7 0.82 0.7 5.5 2.0 1544 10020
Y2-5602-8 1000 122.3 743 94.8 0.83 0.7 5.5 2.0 1692 10170
Y2-5603-8 1120 136.8 743 94.9 0.83 0.7 5.5 2.0 1867 10350
Y2-5604-8 1250 152.4 743 95.1 0.83 0.7 5.5 2.0 2053 10560
Y2-5605-8 1400 170.5 743 95.2 0.83 0.7 5.5 2.0 2262 10800
Y2-6301-8 1600 194.6 743 95.3 0.83 0.7 5.5 2.0 2533 13200
Y2-6302-8 1800 216.1 743 95.4 0.84 0.7 5.5 2.0 2796 13410
Y2-6303-8 2000 239.9 743 95.5 0.84 0.7 5.5 2.0 3052 13590
Y2-6304-8 2240 268.4 743 95.6 0.84 0.7 5.5 2.0 3349 13750
Y2-4001-10 185 25.2 595 91.6 0.77 0.7 5.5 1.8 635 3580
Y2-4002-10 200 26.9 595 91.7 0.78 0.7 5.5 1.8 682 3700
Y2-4003-10 220 29.5 595 91.9 0.78 0.7 5.5 1.8 745 3780
Y2-4004-10 250 33.5 595 92.1 0.78 0.7 5.5 1.8 838 3830
Y2-4005-10 280 37.4 595 92.3 0.78 0.7 5.5 1.8 930 3950
Y2-4501-10 315 41.5 595 92.5 0.79 0.7 5.5 1.8 1037 4820
Y2-4502-10 355 46.6 595 92.7 0.79 0.7 5.5 1.8 1156 4930
Y2-4503-10 400 52.3 595 93.2 0.79 0.7 5.5 1.8 1289 5020
Y2-4504-10 450 58.8 595 93.2 0.79 0.7 5.5 1.8 1435 5170
Y2-5001-10 500 63.5 595 93.5 0.81 0.7 5.5 1.8 1579 7230
Y2-5002-10 560 71.1 595 93.6 0.81 0.7 5.5 1.8 1749 7350
Y2-5003-10 630 79.9 595 93.7 0.81 0.7 5.5 1.8 1945 7480
Y2-5601-10 710 89.9 595 93.8 0.81 0.7 5.5 1.8 2165 10150
Y2-5602-10 800 99.7 595 94.2 0.82 0.7 5.5 1.8 2409 10310
Y2-5603-10 900 112.0 595 94.3 0.82 0.7 5.5 1.8 2675 10500
Y2-5604-10 1000 124.3 595 94.4 0.82 0.7 5.5 1.8 2936 10680
Y2-5605-10 1120 139.1 595 94.5 0.82 0.7 5.5 1.8 3244 10850
Y2-6301-10 1250 154.7 595 94.8 0.82 0.7 5.5 1.8 3571 13210
Y2-6302-10 1400 171.0 595 94.9 0.83 0.7 5.5 1.8 3940 13440
Y2-6303-10 1600 195.5 595 94.9 0.83 0.7 5.5 1.8 4421 13620
Y2-6304-10 1800 219.4 595 95.1 0.83 0.7 5.5 1.8 4892 13770
Y2-4501-12 220 30.9 495 91.3 0.75 0.7 5.5 1.8 1165 4870
Y2-4502-12 250 35.1 495 91.5 0.75 0.7 5.5 1.8 1311 5050
Y2-4503-12 280 38.8 495 92.5 0.75 0.7 5.5 1.8 1456 5190
Y2-4504-12 315 43.6 495 92.7 0.75 0.7 5.5 1.8 1623 5290
Y2-5001-12 355 49.1 495 92.8 0.75 0.7 5.5 1.8 1811 7310
Y2-5002-12 400 52.3 495 93.2 0.79 0.7 5.5 1.8 2020 7430
Y2-5003-12 450 58.8 495 93.2 0.79 0.7 5.5 1.8 2250 7520
Y2-5004-12 500 65.1 495 93.6 0.79 0.7 5.5 1.8 2477 7680
Y2-5601-12 560 72.8 495 93.7 0.79 0.7 5.5 1.8 2745 10210
Y2-5602-12 630 80.8 495 93.8 0.80 0.7 5.5 1.8 3055 10380
Y2-5603-12 710 90.9 495 93.9 0.80 0.7 5.5 1.8 3403 10590
Y2-5604-12 800 102.2 495 94.2 0.80 0.7 5.5 1.8 3788 10730
Y2-5605-12 900 114.8 495 94.3 0.80 0.7 5.5 1.8 4210 10860
Y2-6301-12 1000 127.4 495 94.4 0.80 0.7 5.5 1.8 4625 13250
Y2-6302-12 1120 140.9 495 94.4 0.81 0.7 5.5 1.8 5114 13490
Y2-6303-12 1250 157.0 495 94.6 0.81 0.7 5.5 1.8 5635 13670
Y2-6304-12 1400 175.6 495 94.7 0.81 0.7 5.5 1.8 6225 13820
