185kW-3150kW 3 Phase Asynchronous Motor 50Hz High / Low Voltage

  • 185kW-3150kW 3 Phase Asynchronous Motor 50Hz High / Low Voltage
Place of Origin China
Brand Name Simo Motor
Certification 3C, CE, GOST, CNAS, UL, QMS, EMS
Model Number YX2 Series HV Three-phase Asynchronous Motor
Minimum Order Quantity 1
Packaging Details Solid Wood Package
Delivery Time 50-60 working days
Payment Terms T/T
Product Details
Type 3 Phase Asynchronous Motor Frame H355-H630
Voltage 6kV, 10kV, Etc No. Of Poles 2P, 4P, 6P, 8P, 10P, 12P
Protection Grade IP44, IP54, IP55 Power 185kW-3150kW
Frequency 50Hz Cooling Type IC411
Mounting Type IM B3
High Light

3150kW 3 Phase Asynchronous Motor

,

185kW 3 Phase Asynchronous Motor

,

50Hz 3 Phase Asynchronous Motor
Leave a Message
Product Description

185kW-3150kW 3 Phase Asynchronous Motor 50Hz High / Low Voltage



Technical Advantage

This series of high and low voltage 3 Phase Asynchronous Motor is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards.



Product Features

This series of 3 Phase Asynchronous Motor has advantages of compact structure, light weight, high efficiency, energy-saving, low noise and vibration, high reliability, long service life and convenient installation and maintenance, etc.



Operation Conditions

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).



Wide Application

This series of 3 Phase Asynchronous Motor is mainly applied in general machinery equipment or other similar machinery equipment, such as rolling mill, winch, blowers, water pump, mill, crusher, grinder applied in petroleum, chemical engineering, coal, power station, metallurgical, textile, medicine, food processing industries.



Profile Display

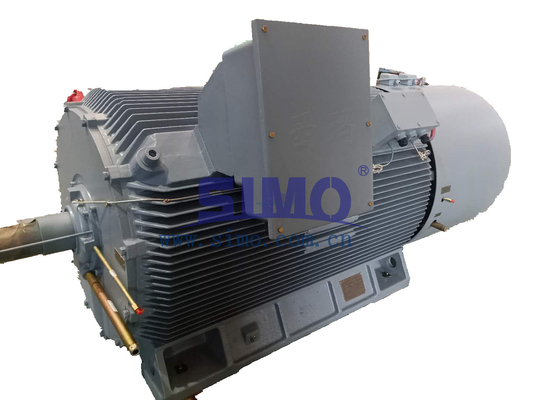

185kW-3150kW 3 Phase Asynchronous Motor 50Hz High / Low Voltage 0



Available Types of YX2 3 Phase Asynchronous Motor



Type



Rated Power

kW



Rated Current

A



Rated

Speed

r/min



Efficiency

%



Power Factor

Cosφ

Locked Torque

Locked Current

Max. Torque



Load moment of inertia

kg.m2



Weight

Kg

Rated

Torque

Rated

Current

Rated Torque
YX2-3551-2 185 22.5 2985 93.0 0.85 0.7 7.0 2.0 12 2350
YX2-3552-2 200 24.3 2985 93.2 0.85 0.7 7.0 2.0 13 2410
YX2-3553-2 220 26.7 2985 93.3 0.85 0.7 7.0 2.0 14 2460
YX2-3554-2 250 30.3 2985 93.4 0.85 0.7 7.0 2.0 16 2500
YX2-3555-2 280 33.1 2985 93.6 0.87 0.7 7.0 2.0 18 2540
YX2-3556-2 315 37.1 2985 93.9 0.87 0.7 7.0 2.0 19 2600
YX2-3557-2 355 41.7 2985 94.1 0.87 0.7 7.0 2.0 21 2650
YX2-3558-2 400 46.8 2985 94.5 0.87 0.7 7.0 2.0 24 2720
YX2-4001-2 450 52.6 2985 94.7 0.87 0.7 7.0 2.0 26 3070
YX2-4002-2 500 57.6 2985 95.0 0.88 0.7 7.0 2.0 29 3190
YX2-4003-2 560 64.4 2985 95.1 0.88 0.7 7.0 2.0 31 3350
YX2-4501-2 630 72.4 2985 95.2 0.88 0.7 7.0 2.0 34 3925
YX2-4502-2 710 81.5 2985 95.3 0.88 0.7 7.0 2.0 38 4150
YX2-4503-2 800 90.5 2985 95.6 0.89 0.7 7.0 2.0 41 4320
YX2-5001-2 900 101.7 2985 95.7 0.89 0.7 7.0 2.0 45 6510
YX2-5002-2 1000 112.9 2985 95.8 0.89 0.7 7.0 2.0 49 6630
YX2-5003-2 1120 126.3 2985 95.9 0.89 0.7 7.0 2.0 53 6720
YX2-5004-2 1250 139.1 2985 96.1 0.90 0.7 7.0 2.0 57 6850
YX2-5005-2 1400 155.6 2985 96.2 0.90 0.7 7.0 2.0 62 7020
YX2-5601-2 1600 177.6 2985 96.3 0.90 0.7 7.0 2.0 67 10500
YX2-5602-2 1800 199.8 2985 96.3 0.90 0.7 7.0 2.0 72 10850
YX2-5603-2 2000 219.2 2985 96.5 0.91 0.7 7.0 2.0 77 11100
YX2-6301-2 2240 245.2 2985 96.6 0.91 0.7 7.0 2.0 81 12980
YX2-6302-2 2500 273.7 2985 96.6 0.91 0.7 7.0 2.0 86 13020
YX2-6303-2 2800 306.2 2985 96.7 0.91 0.7 7.0 2.0 90 13200
YX2-3551-4 185 22.4 1485 93.4 0.85 0.8 6.5 2.0 68 2725
YX2-3552-4 200 24.2 1485 93.6 0.85 0.8 6.5 2.0 73 2770
YX2-3553-4 220 26.6 1485 93.7 0.85 0.8 6.5 2.0 80 2810
YX2-3554-4 250 30.2 1485 93.8 0.85 0.8 6.5 2.0 90 2835
YX2-3555-4 280 33.8 1485 93.9 0.85 0.8 6.5 2.0 99 2865
YX2-3556-4 315 37.5 1485 94.1 0.86 0.8 6.5 2.0 110 2910
YX2-3557-4 355 42.1 1485 94.3 0.86 0.8 6.5 2.0 123 2950
YX2-3558-4 400 47.4 1485 94.4 0.86 0.8 6.5 2.0 136 3005
YX2-4001-4 450 53.2 1485 94.6 0.86 0.8 6.5 2.0 151 3420
YX2-4002-4 500 58.3 1485 94.8 0.87 0.8 6.5 2.0 165 3490
YX2-4003-4 560 65.2 1485 95.0 0.87 0.8 6.5 2.0 182 3670
YX2-4501-4 630 73.2 1485 95.2 0.87 0.8 6.5 2.0 202 4435
YX2-4502-4 710 82.3 1485 95.4 0.87 0.8 6.5 2.0 223 4650
YX2-4503-4 800 92.7 1485 95.5 0.87 0.8 6.5 2.0 247 4870
YX2-4504-4 900 104.1 1485 95.6 0.87 0.8 6.5 2.0 273 5010
YX2-5001-4 1000 115.6 1485 95.7 0.87 0.8 6.5 2.0 297 6770
YX2-5002-4 1120 129.3 1485 95.8 0.87 0.8 6.5 2.0 326 7020
YX2-5003-4 1250 142.4 1485 96.0 0.88 0.8 6.5 2.0 356 7340
YX2-5004-4 1400 159.5 1485 96.0 0.88 0.8 6.5 2.0 390 7560
YX2-5601-4 1600 182.1 1485 96.1 0.88 0.7 6.5 2.0 433 7900
YX2-5602-4 1800 204.6 1485 96.2 0.88 0.7 6.5 2.0 473 9850
YX2-5603-4 2000 224.3 1485 96.4 0.89 0.7 6.5 2.0 512 10090
YX2-5604-4 2240 251.0 1485 96.5 0.89 0.7 6.5 2.0 556 10860
YX2-6301-4 2500 279.8 1485 96.6 0.89 0.7 6.5 2.0 601 13020
YX2-6302-4 2800 313.4 1485 96.6 0.89 0.7 6.5 2.0 649 13180
YX2-6303-4 3150 351.8 1485 96.8 0.89 0.7 6.5 2.0 702 13400
YX2-3553-6 185 23.6 988 93.2 0.81 0.8 6.0 2.0 185 2910
YX2-3554-6 200 25.4 988 93.4 0.81 0.8 6.0 2.0 199 2940
YX2-3555-6 220 27.3 988 93.5 0.83 0.8 6.0 2.0 217 3050
YX2-3556-6 250 30.9 988 93.7 0.83 0.8 6.0 2.0 243 3110
YX2-3557-6 280 34.6 988 93.9 0.83 0.8 6.0 2.0 270 3160
YX2-3558-6 315 38.8 988 94.2 0.83 0.8 6.0 2.0 300 3155
YX2-4001-6 355 43.1 988 94.4 0.84 0.8 6.0 2.0 334 3560
YX2-4002-6 400 48.5 988 94.4 0.84 0.8 6.0 2.0 372 3620
YX2-4003-6 450 54.4 988 94.7 0.84 0.8 6.0 2.0 413 3690
YX2-4004-6 500 60.3 988 95.0 0.84 0.8 6.0 2.0 454 3740
YX2-4501-6 560 67.5 988 95.1 0.84 0.8 6.0 2.0 502 4535
YX2-4502-6 630 75.8 988 95.2 0.84 0.8 6.0 2.0 557 4750
YX2-4503-6 710 85.3 988 95.4 0.84 0.8 6.0 2.0 618 4970
YX2-5001-6 800 96.0 988 95.5 0.84 0.8 6.0 2.0 686 6870　
YX2-5002-6 900 106.6 988 95.6 0.85 0.8 6.0 2.0 759 7120
YX2-5003-6 1000 118.3 988 95.7 0.85 0.8 6.0 2.0 831 7440
YX2-5004-6 1120 132.3 988 95.8 0.85 0.8 6.0 2.0 915 7660
YX2-5601-6 1250 147.4 988 96.0 0.85 0.7 6.0 2.0 1004 10150
YX2-5602-6 1400 161.3 988 96.0 0.87 0.7 6.0 2.0 1103 10290
YX2-5603-6 1600 184.1 988 96.1 0.87 0.7 6.0 2.0 1232 10460
YX2-5604-6 1800 207.0 988 96.2 0.87 0.7 6.0 2.0 1356 10750
YX2-6301-6 2000 229.5 988 96.4 0.87 0.7 6.0 2.0 1475 13170
YX2-6302-6 2240 257.0 988 96.4 0.87 0.7 6.0 2.0 1613 13385
YX2-6303-6 2500 286.5 988 96.5 0.87 0.7 6.0 2.0 1757 13530
YX2-3555-8 185 24.8 743 93.1 0.77 0.8 5.5 2.0 370 2930
YX2-3556-8 200 26.4 743 93.3 0.78 0.8 5.5 2.0 398 2980
YX2-3557-8 220 29.1 743 93.4 0.78 0.8 5.5 2.0 434 3100
YX2-3558-8 250 32.6 743 93.5 0.79 0.8 5.5 2.0 488 3170
YX2-4001-8 280 36.4 743 93.7 0.79 0.8 5.5 2.0 541 3580
YX2-4002-8 315 40.9 743 93.9 0.79 0.8 5.5 2.0 603 3650
YX2-4003-8 355 46.0 743 94.0 0.79 0.8 5.5 2.0 672 3720
YX2-4004-8 400 51.1 743 94.2 0.80 0.8 5.5 2.0 749 3760
YX2-4501-8 450 57.4 743 94.3 0.80 0.8 5.5 2.0 833 4550
YX2-4502-8 500 62.7 743 94.8 0.81 0.8 5.5 2.0 916 4760
YX2-4503-8 560 70.1 743 94.9 0.81 0.8 5.5 2.0 1014 4980
YX2-5001-8 630 77.8 743 95.0 0.82 0.8 5.5 2.0 1126 6890　
YX2-5002-8 710 87.7 743 95.0 0.82 0.8 5.5 2.0 1252 7150
YX2-5003-8 800 98.6 743 95.2 0.82 0.8 5.5 2.0 1392 7370
YX2-5601-8 900 110.8 743 95.3 0.82 0.7 5.5 2.0 1544 10020
YX2-5602-8 1000 121.5 743 95.4 0.83 0.7 5.5 2.0 1692 10170
YX2-5603-8 1120 136.0 743 95.5 0.83 0.7 5.5 2.0 1867 10350
YX2-5604-8 1250 151.6 743 95.6 0.83 0.7 5.5 2.0 2053 10560
YX2-5605-8 1400 169.6 743 95.7 0.83 0.7 5.5 2.0 2262 10800
YX2-6301-8 1600 193.6 743 95.8 0.83 0.7 5.5 2.0 2533 13200
YX2-6302-8 1800 215.0 743 95.9 0.84 0.7 5.5 2.0 2796 13410
YX2-6303-8 2000 238.7 743 96.0 0.84 0.7 5.5 2.0 3052 13590
YX2-6304-8 2240 267.0 743 96.1 0.84 0.7 5.5 2.0 3349 13750
YX2-4001-10 185 25.0 595 92.5 0.77 0.7 5.5 1.8 635 3580
YX2-4002-10 200 26.6 595 92.6 0.78 0.7 5.5 1.8 682 3700
YX2-4003-10 220 29.2 595 92.8 0.78 0.7 5.5 1.8 745 3780
YX2-4004-10 250 33.2 595 92.9 0.78 0.7 5.5 1.8 838 3830
YX2-4005-10 280 37.1 595 93.1 0.78 0.7 5.5 1.8 930 3950
YX2-4501-10 315 41.1 595 93.3 0.79 0.7 5.5 1.8 1037 4820　
YX2-4502-10 355 46.2 595 93.5 0.79 0.7 5.5 1.8 1156 4930　
YX2-4503-10 400 51.9 595 93.9 0.79 0.7 5.5 1.8 1289 5020　
YX2-4504-10 450 58.4 595 93.9 0.79 0.7 5.5 1.8 1435 5170　
YX2-5001-10 500 63.1 595 94.2 0.81 0.7 5.5 1.8 1579 7230
YX2-5002-10 560 70.5 595 94.3 0.81 0.7 5.5 1.8 1749 7350
YX2-5003-10 630 79.3 595 94.4 0.81 0.7 5.5 1.8 1945 7480　
YX2-5601-10 710 89.3 595 94.5 0.81 0.7 5.5 1.8 2165 10150
YX2-5602-10 800 99.0 595 94.8 0.82 0.7 5.5 1.8 2409 10310　
YX2-5603-10 900 111.3 595 94.9 0.82 0.7 5.5 1.8 2675 10500　
YX2-5604-10 1000 123.5 595 95.0 0.82 0.7 5.5 1.8 2936 10680　
YX2-5605-10 1120 138.2 595 95.1 0.82 0.7 5.5 1.8 3244 10850　
YX2-6301-10 1250 153.8 595 95.4 0.82 0.7 5.5 1.8 3571 13210
YX2-6302-10 1400 170.0 595 95.5 0.83 0.7 5.5 1.8 3940 13440
YX2-6303-10 1600 194.2 595 95.5 0.83 0.7 5.5 1.8 4421 13620
YX2-6304-10 1800 218.3 595 95.6 0.83 0.7 5.5 1.8 4892 13770
YX2-4501-12 220 30.6 495 92.2 0.75 0.7 5.5 1.8 1165 4870　
YX2-4502-12 250 34.7 495 92.4 0.75 0.7 5.5 1.8 1311 5050　
YX2-4503-12 280 38.5 495 93.3 0.75 0.7 5.5 1.8 1456 5190　
YX2-4504-12 315 43.2 495 93.5 0.75 0.7 5.5 1.8 1623 5290　
YX2-5001-12 355 48.7 495 93.6 0.75 0.7 5.5 1.8 1811 7310　
YX2-5002-12 400 51.9 495 93.9 0.79 0.7 5.5 1.8 2020 7430　
YX2-5003-12 450 58.4 495 93.9 0.79 0.7 5.5 1.8 2250 7520
YX2-5004-12 500 64.6 495 94.3 0.79 0.7 5.5 1.8 2477 7680
YX2-5601-12 560 72.3 495 94.4 0.79 0.7 5.5 1.8 2745 10210
YX2-5602-12 630 80.2 495 94.5 0.80 0.7 5.5 1.8 3055 10380　
YX2-5603-12 710 90.4 495 94.5 0.80 0.7 5.5 1.8 3403 10590　
YX2-5604-12 800 101.5 495 94.8 0.80 0.7 5.5 1.8 3788 10730　
YX2-5605-12 900 114.1 495 94.9 0.80 0.7 5.5 1.8 4210 10860　
YX2-6301-12 1000 126.6 495 95.0 0.80 0.7 5.5 1.8 4625 13250
YX2-6302-12 1120 140.1 495 95.0 0.81 0.7 5.5 1.8 5114 13490
YX2-6303-12 1250 156.0 495 95.2 0.81 0.7 5.5 1.8 5635 13670
YX2-6304-12 1400 174.5 495 95.3 0.81 0.7 5.5 1.8 6225 13820
